HGD-5000-ST Hydrogen Gas Detector, Battery Room Exhaust Fan, Strobe Alarm, and Test Kit
Overview

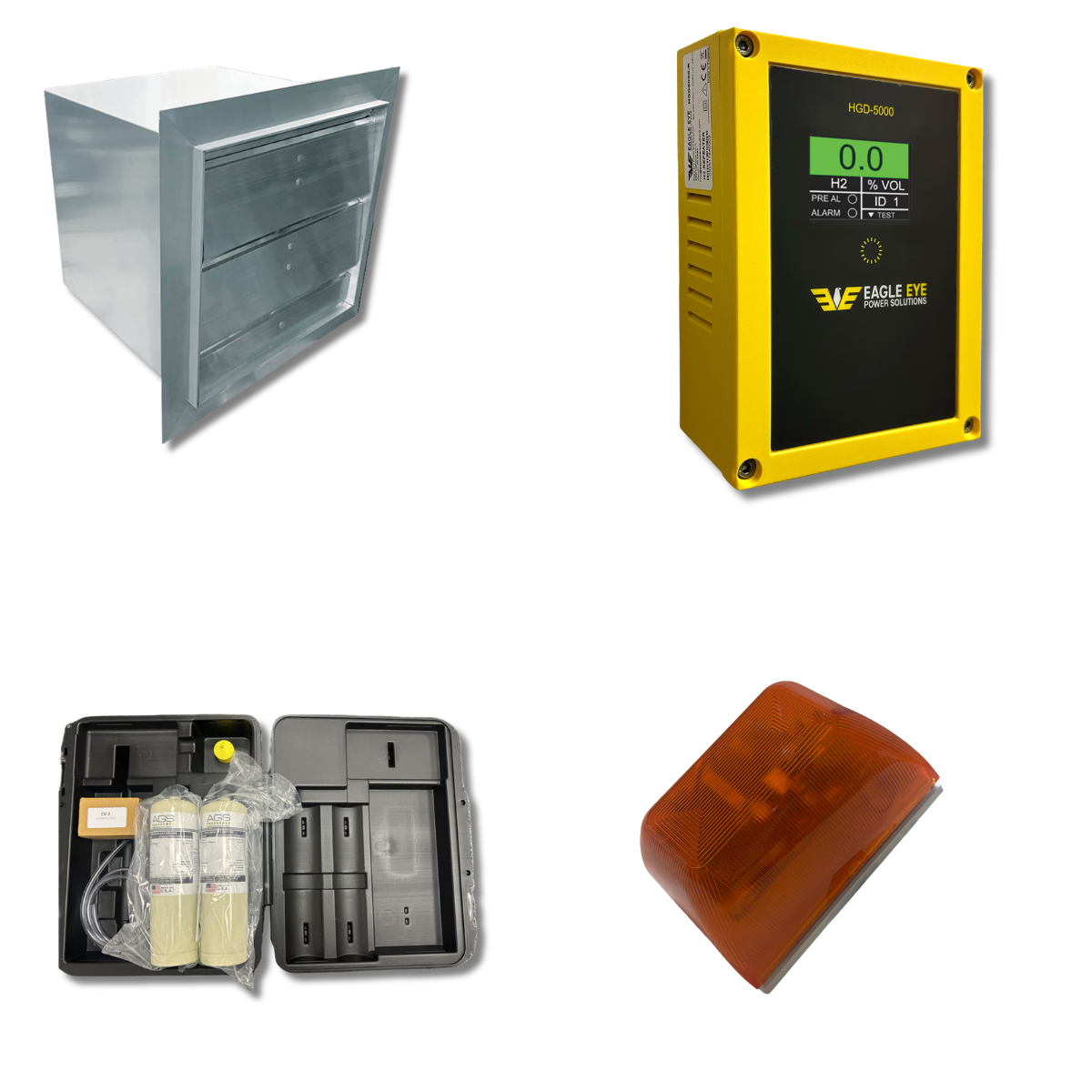

The HGD-5000-ST , , , and is a comprehensive, all-in-one hydrogen safety solution designed for battery rooms, substations, data centers, and industrial environments. This system combines real-time gas detection, automated ventilation, and routine testing capabilities to ensure continuous safety and compliance.
At the core of the system is the , engineered with a 10-year lifespan and replaceable sensor for long-term reliability. The detector continuously monitors hydrogen gas levels and integrates with facility systems to activate alarms, ventilation, and external alerts when thresholds are exceeded.
The included delivers 1050 CFM of forced-air ventilation to help purge hydrogen, flammable vapors, and toxic gases from confined spaces. Designed for seamless integration with the , the fan can be automatically activated via internal relays, creating a responsive and effective ventilation system.
To ensure ongoing performance and compliance, the system also includes the . This reusable kit provides two along with the necessary regulator, tubing, and applicator cone, enabling quick and reliable verification of detector functionality.
The incorporates enhanced safety and performance upgrades, including increased airflow, dedicated grounding and bonding, improved fuse protection, upgraded terminals, and a durable all-metal construction—all while maintaining the same form, fit, and installation requirements.
The delivers both audible and visual alerts, featuring 32 selectable tones, a high-intensity 10-LED strobe, and low power consumption—allowing multiple units to operate from a single HGD-5000.
Together, these components form a complete hydrogen safety ecosystem—detecting hazards, responding automatically, and enabling routine verification—making the HGD-5000-ST an ideal solution for facilities seeking a reliable, cost-effective, and easy-to-deploy hydrogen gas safety system.
Features
- Complete hydrogen safety system combining detection, ventilation, and testing
- Includes , , , and
- features a 10-year lifespan with replaceable sensor
- Real-time hydrogen gas monitoring for critical environments
- Automatic fan and alarm activation via internal relays
- Two analog outputs for integration with monitoring systems
- The provides an external strobe output for audible and visual alarm indication
- 4-second alarm delay reduces false activation events
- Supplied factory calibrated for immediate installation
- delivers 1050 CFM of forced-air ventilation
- Helps remove hydrogen, flammable vapors, and toxic gases
- Enhanced fan design with grounding, fuse protection, and improved terminals
- Durable all-metal fan construction for long-term reliability
- supports routine maintenance and compliance
- Includes two for multiple tests
- Easy-to-install solution with consistent form, fit, and function
- Ideal for battery rooms, substations, data centers, and industrial facilities
Specifications
| Product Name | HGD-5000-ST Hydrogen Gas Detection, Ventilation, Strobe Alarm, and Test Kit System |
| Kit Components | HGD-5000 Hydrogen Gas Detector, VS-12-110VAC Exhaust Fan, HGD-AAB-A Strobe Alarm, EE-TEST-H-17L-KIT Bump Test Kit |
| Target Gas | Hydrogen (H₂) – 1% Vol (warning), 2% Vol (alarm) |
| Detector Lifespan | 10 years (replaceable sensor) |
| Detector Outputs | (2) Internal relays, (2) analog outputs, external strobe output |
| Alarm Delay | 4-second delay to prevent false activation |
| Detector Power Requirements | 110 VAC, 24 VAC, 18–60 VDC |
| Detector Operating Environment | Temperature: -10 – 40 °C (14 – 104 °F) |
| Detector Calibration | Factory calibrated |
| Fan Airflow | 1050 CFM |
| Fan Voltage | 110 VAC |
| Fan Construction | Durable all-metal design |
| Fan Enhancements | Grounding and bonding, inline fuse protection, upgraded terminals, improved internal architecture, increased airflow |
| Test Kit Contents | (2) 17L hydrogen gas canisters, regulator, tubing, applicator cone |
| Test Kit Function | Reusable bump testing solution for verifying detector response |
| System Function | Detects hydrogen gas, activates ventilation, and enables routine system verification |
| Ideal Use Cases | Battery rooms, substations, data centers, telecom facilities, industrial storage areas, remote and off-grid sites |
| Warranty | 3 years (detector) |
Resources & Support
Product Literature
Support Documents
FAQs
What is it used for?
Bump testing verifies that the detector responds correctly to hydrogen gas exposure, ensuring the system will function properly when needed.
Is the bump test kit reusable?
Yes, the included regulator, tubing, and applicator cone are reusable, and the kit includes two gas canisters for multiple testing cycles.
What environments is this system designed for?
The HGD-5000-ST is ideal for battery rooms, substations, telecom facilities, data centers, industrial storage areas, and other confined spaces where hydrogen gas may accumulate.
Does this system require complex installation?
No. The system is designed for straightforward installation with consistent mounting, electrical interfaces, and integration between components.
