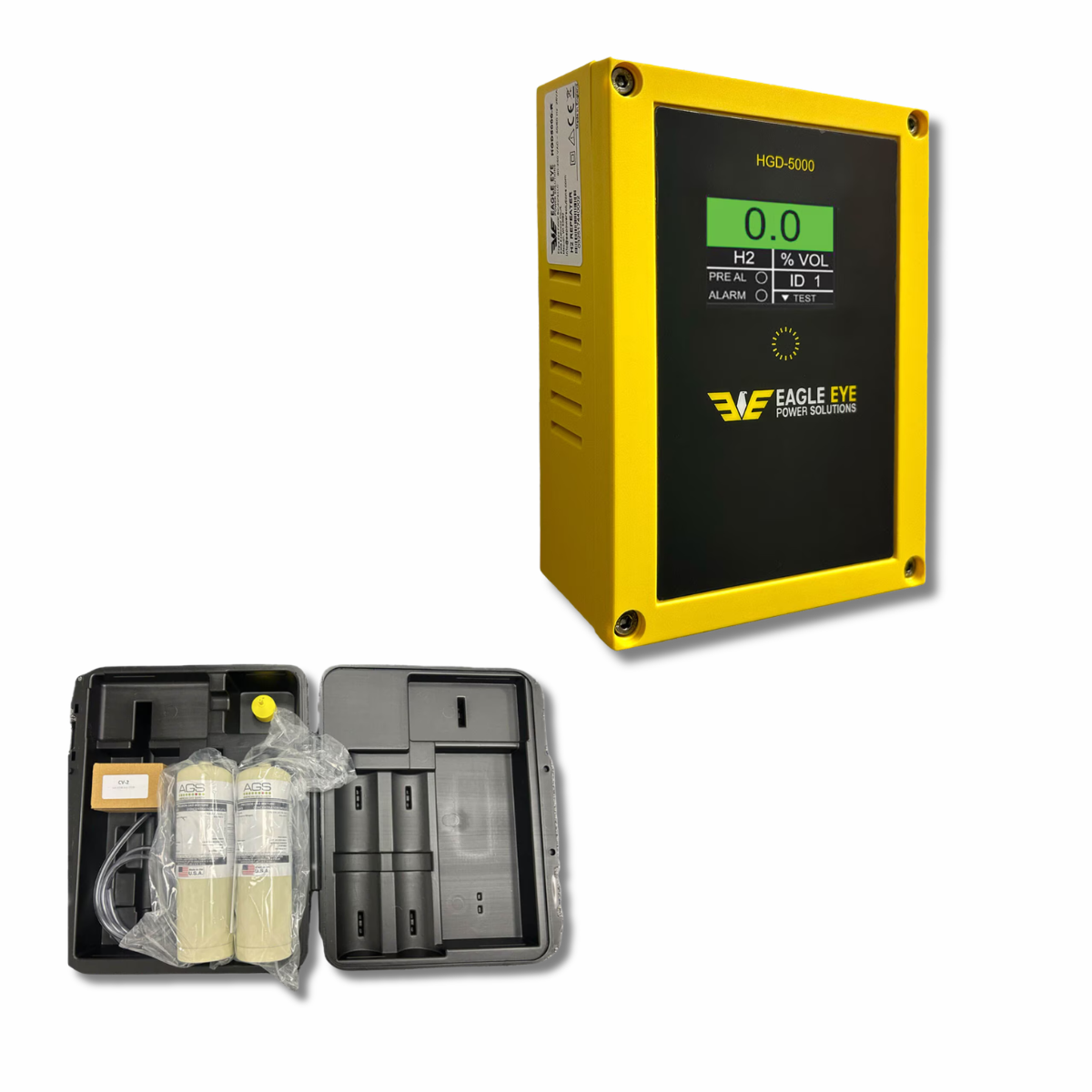

HGD-5000-GDTK Hydrogen Gas Detector and Test Kit
Overview
The HGD-5000-GDTK and from Eagle Eye Power Solutions provides a comprehensive hydrogen safety solution by combining continuous monitoring with convenient, repeatable testing capability. Engineered for critical environments such as battery rooms, substations, UPS systems, and telecom facilities, this kit ensures both detection reliability and ongoing system validation.
At the core of the kit is the , designed with a 10-year lifespan—delivering long-term performance and reduced maintenance costs. The detector continuously monitors hydrogen gas levels and integrates seamlessly into facility safety systems, activating alarms, ventilation, or external warning devices when thresholds are exceeded.
To support ongoing compliance and operational assurance, the included enables quick and effective bump testing of installed detectors. The kit includes two 17L hydrogen gas canisters along with a regulator, tubing, and applicator cone, allowing technicians to verify sensor responsiveness without complex setup. The reusable accessory set supports multiple tests, making it a cost-effective solution for routine maintenance programs.
Together, this combined solution ensures that hydrogen detection systems are not only installed but verified, maintained, and ready to perform when needed—helping facilities mitigate risk, meet safety standards, and maintain operational continuity.
Features
- Complete hydrogen safety solution combining detection and testing
- with 10-year lifespan for long-term reliability
- Replaceable sensor with extended service life
- Real-time hydrogen gas monitoring for critical environments
- Dual internal relays for fan and alarm activation
- Two analog outputs for system integration
- Output connection for or alarm devices
- 4-second alarm delay to prevent false activation
- Multiple power input options: 110VAC, 24VAC, 18–60VDC
- Supplied factory calibrated for immediate deployment
- Includes with two 17L hydrogen canisters
- Regulator, tubing, and applicator cone included for easy testing
- Supports routine maintenance and compliance verification
Specifications
| Product Name | HGD-5000-GDTK Hydrogen Gas Detector and Test Kit |
| Target Gas | Hydrogen (H₂) – 1% Vol (warning), 2% Vol (alarm) |
| Detector Lifespan | 10 years (replaceable sensor) |
| Alarm & Outputs | (2) Internal relays for fan/alarm activation, (2) analog outputs, external strobe output |
| Alarm Delay | 4-second delay to prevent false activation |
| Power Requirements | 110 VAC, 24 VAC, 18–60 VDC |
| Operating Environment | Temperature: -10 – 40 °C (14 – 104 °F) |
| Calibration | Factory calibrated |
| Test Kit Contents | (2) 17L hydrogen gas canisters, regulator, vinyl tubing, applicator cone |
| Test Kit Function | Reusable bump testing solution for verifying detector response |
| Mounting | Wall-mounted (hardware included) |
| Housing Material | ABS, flame retardant (UL 94V-1) |
| Display | 1.8″ TFT screen |
| Dimensions | 151 x 111 x 50 mm (5.95 x 4.37 x 1.97 in) |
| Weight | 7.5 oz (detector only) |
| Compliance | IEEE 450; NFPA 2 Hydrogen Technologies Code; NEC 480.9(A); NEC 501.125(B); NEC 501.105 (Class I, Division 2, Group B) |
Resources & Support
Product Literature
Support Documents
FAQs
What is included in the HGD-5000-GDTK kit?
The kit includes the along with a complete featuring two 17L hydrogen gas canisters, a regulator, tubing, and an applicator cone for efficient sensor testing.
What environments is this kit designed for?
This solution is ideal for battery rooms, substations, data centers, telecom facilities, and any environment where hydrogen gas may accumulate due to battery charging systems.
How often should bump testing be performed?
Bump testing frequency depends on facility policies and regulatory requirements, but it is typically performed on a routine schedule to verify detector response and ensure proper operation.
Can the test kit be reused?
Yes, the included accessories such as the regulator, tubing, and applicator cone are reusable. The kit includes two gas canisters to support multiple tests over time.
Does the HGD-5000 integrate with existing systems?
Yes, the includes analog outputs, internal relays, and external alarm connections, allowing it to integrate with ventilation systems, alarms, and building management systems.
What power options are supported?
The detector supports multiple power inputs including 110VAC, 24VAC, and 18–60VDC, providing flexibility for different installation environments.
