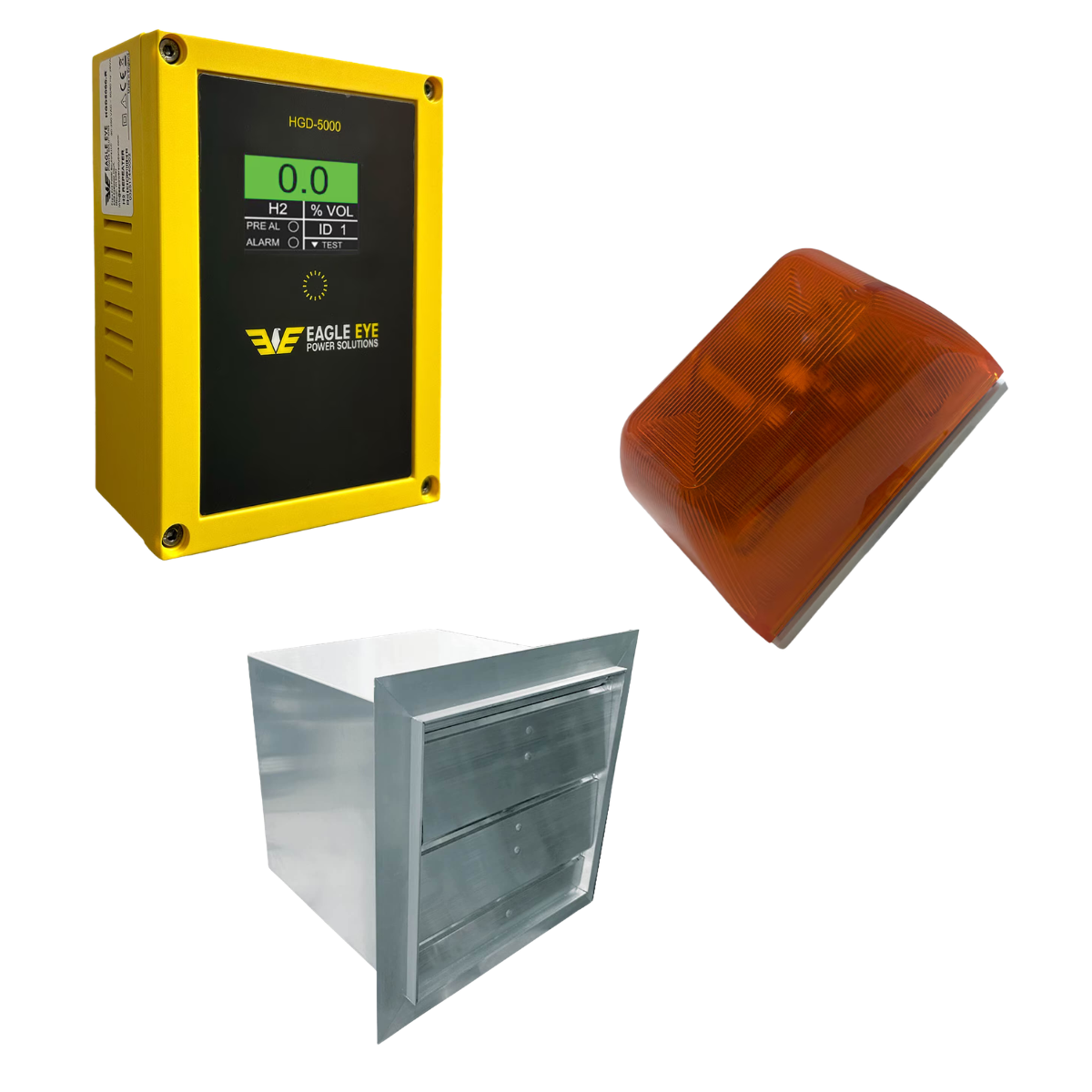

HGD-5000-GDF Hydrogen Gas Detector Exhaust Fan and Strobe Kit
Overview
The HGD-5000-GDF , , and Kit delivers a complete hydrogen safety solution for battery charging rooms, substations, industrial storage areas, and other confined environments where hydrogen gas may accumulate. By combining Eagle Eye Power Solutions’ with the and the , this kit supports both real-time gas detection and effective forced-air ventilation in one integrated package.
The continuously monitors hydrogen levels and is designed for long-term reliability with a 10-year lifespan and replaceable sensor. It provides real-time detection, internal relays for alarm and fan activation, analog outputs, and external strobe connectivity for seamless integration into existing safety systems. With multiple power input options and factory calibration, it is built for flexible installation in critical power environments.
Paired with the detector is the , a high-performance ventilation fan delivering 1050 CFM of airflow to help purge hydrogen, flammable vapors, and toxic gases from enclosed spaces. Designed for motive power, stationary battery, and industrial applications, the fan supports safer operating conditions while helping facilities align with hydrogen safety best practices.
The has also been enhanced with increased airflow, a dedicated ground conductor and bonding, upgraded fuse protection, improved terminal design, cleaner internal architecture, and a stronger all-metal structure. These improvements maintain the same part number, installation footprint, mounting, and electrical interface, allowing customers to benefit from added performance and durability without requiring requalification.
The provides audio and visual alerts featuring 32 selectable tones, 10-LED High Fidelity strobe light, and low power consumption to run multiple units off a single .
Together, the , and create a cost-effective, easy-to-install hydrogen gas detection and ventilation system for remote facilities, off-grid locations, and any site seeking a dependable battery room safety solution.
Features
- Complete hydrogen gas detection and ventilation solution
- Includes ,
- features a 10-year lifespan with replaceable sensor
- Real-time hydrogen gas monitoring for battery rooms and critical environments
- Internal relays support automatic fan and alarm activation
- Two analog outputs for integration with external monitoring systems
- for added visual alarm capability
- 4-second alarm delay helps prevent false activation
- Supplied factory calibrated for immediate deployment
- delivers 1050 CFM of forced-air ventilation
- Helps remove hydrogen, flammable vapors, and toxic gases from confined spaces
- Ideal for motive power, stationary battery, and industrial applications
- Enhanced fan design includes dedicated grounding and bonding
- Improved inline fuse and upgraded terminal design for added reliability
- Durable all-metal fan construction for long-term performance
- Same form, fit, function, and installation footprint as previous version
- The provides redundant audible alarming for hazardous gas leaks, extending alerts beyond the hydrogen gas detector’s built-in buzzer to remote locations for enhanced safety
- Cost-effective solution for remote sites and low-complexity installations
Specifications
| Product Name | HGD-5000-GDF Hydrogen Gas Detector, Strobe and Exhaust Fan Kit |
| Kit Components | HGD-5000 Hydrogen Gas Detector, HGD-AAB-A Strobe Alarm and VS-12-110VAC Battery Room Exhaust Fan |
| Target Gas | Hydrogen (H₂) – 1% Vol (warning), 2% Vol (alarm) |
| Detector Lifespan | 10 years (replaceable sensor) |
| Detector Outputs | (2) Internal relays, (2) analog outputs, external strobe output |
| Alarm Delay | 4-second delay to prevent false activation |
| Detector Power Requirements | 110 VAC, 24 VAC, 18–60 VDC |
| Detector Operating Environment | Temperature: -10 – 40 °C (14 – 104 °F) |
| Detector Calibration | Factory calibrated |
| Fan Airflow | 1050 CFM |
| Fan Voltage | 110 VAC |
| Fan Application | Battery charging rooms, motive power areas, stationary battery rooms, industrial storage areas |
| Fan Construction | Durable all-metal design |
| Fan Enhancements | Dedicated grounding and bonding, enhanced inline fuse, upgraded terminal design, cleaner internal architecture, increased airflow |
| Installation | Same form, fit, function, mounting, and electrical interface as prior version |
| System Function | Detects hydrogen gas buildup and supports automatic ventilation activation |
| Ideal Use Cases | Remote facilities, off-grid sites, and low-cost hydrogen ventilation installations |
Resources & Support
Product Literature
Support Documents
FAQs
What is included in the HGD-5000-GDF kit?
The kit includes the , Battery Room Exhaust Fan, and visual/audio alarm providing both hydrogen detection and forced-air ventilation in one integrated solution.
What is the purpose of this kit?
This kit is designed to detect hydrogen gas buildup and help ventilate battery rooms or other enclosed spaces where hydrogen, flammable vapors, or toxic gases may accumulate.
What environments is the HGD-5000-GDF intended for?
This solution is ideal for battery charging rooms, substations, industrial storage spaces, motive power applications, stationary battery rooms, remote facilities, and off-grid sites.
How does the HGD-5000 work with the ventilation fan?
The includes internal relays that can activate the fan when hydrogen gas reaches the configured threshold, helping automate ventilation response and improve facility safety.
What airflow does the VS-12-110VAC provide?
The delivers 1050 CFM of forced-air ventilation, providing a 23% airflow increase over the previous design while maintaining the same form, fit, and installation footprint.
What upgrades were made to the VS-12-110VAC fan?
The updated fan includes dedicated grounding and bonding, enhanced inline fuse protection, upgraded terminal design, cleaner internal architecture, stronger all-metal construction, and increased airflow, all without changing the part number, price, or installation requirements.
Does the HGD-5000 require frequent replacement?
No. The is designed with a 10-year lifespan and a replaceable sensor, offering long-term reliability and reduced maintenance compared to earlier models.
Is this a cost-effective hydrogen safety solution?
Yes. By combining gas detection and ventilation into one package, the HGD-5000-GDF offers a practical and cost-effective solution for facilities that need dependable hydrogen safety without a complex installation.
