HGD-5000-ST-R Hydrogen Gas Detector, Battery Room Exhaust Fan, Test Kit, Strobe Alarm, and Repeater
Overview
The HGD-5000-ST-R , , , , and is a fully integrated hydrogen safety solution designed for battery rooms, substations, data centers, and industrial facilities. This system combines detection, ventilation, testing, and remote monitoring to provide comprehensive protection against hydrogen gas buildup.
At the core is the , engineered with a 10-year lifespan and a replaceable sensor for long-term reliability. It continuously monitors hydrogen gas levels and activates alarms, ventilation, and external indicators when thresholds are exceeded. With analog outputs, internal relays, and multiple power options, the detector integrates seamlessly into existing safety systems.
The delivers 1050 CFM of forced-air ventilation to remove hydrogen, flammable vapors, and toxic gases from confined spaces. Designed for seamless operation with the , the fan can be automatically triggered via internal relays to support rapid hazard mitigation.
The system also includes the , providing a reusable solution for verifying detector performance. With two and all required accessories, technicians can quickly confirm proper sensor response as part of routine maintenance programs.
The provides reliable audible and visual alerts with 32 selectable tones, a high-intensity 10-LED strobe, and energy-efficient operation—enabling multiple units to be powered from a single .
Enhancing system visibility, the included allows monitoring of hydrogen gas levels, alarms, and system status. This is especially valuable in large facilities or installations where detectors are mounted in hard-to-access locations, enabling safer and more convenient oversight.
Together, these components deliver a complete hydrogen safety ecosystem—detecting gas buildup, activating ventilation, enabling routine testing, and providing remote status visibility—making the HGD-5000-ST-R an ideal solution for facilities seeking a scalable, reliable, and easy-to-deploy hydrogen safety system.
Features
- Complete hydrogen safety system with , , , and
- Includes, , , , and repeater
- features a 10-year lifespan with replaceable sensor
- Real-time hydrogen gas monitoring for critical environments
- Automatic fan and alarm activation via internal relays
- Two analog outputs for integration with monitoring systems
- External strobe output for visual alarm indication
- 4-second alarm delay reduces false activation events
- Supplied factory calibrated for immediate installation
- VS-12-110VAC fan delivers 1050 CFM of forced-air ventilation
- Helps remove hydrogen, flammable vapors, and toxic gases
- Enhanced fan design with grounding, fuse protection, and improved terminals
- Durable all-metal fan construction for long-term reliability
- Reusable bump test kit supports routine maintenance and compliance
- Includes two 17L hydrogen gas canisters for multiple tests
- Ideal for large or hard-to-access battery room installations
- Cost-effective, scalable solution for critical power environments
Specifications
| Product Name | HGD-5000-ST-R Hydrogen Gas Detection, Ventilation, Test Kit, and Repeater System |

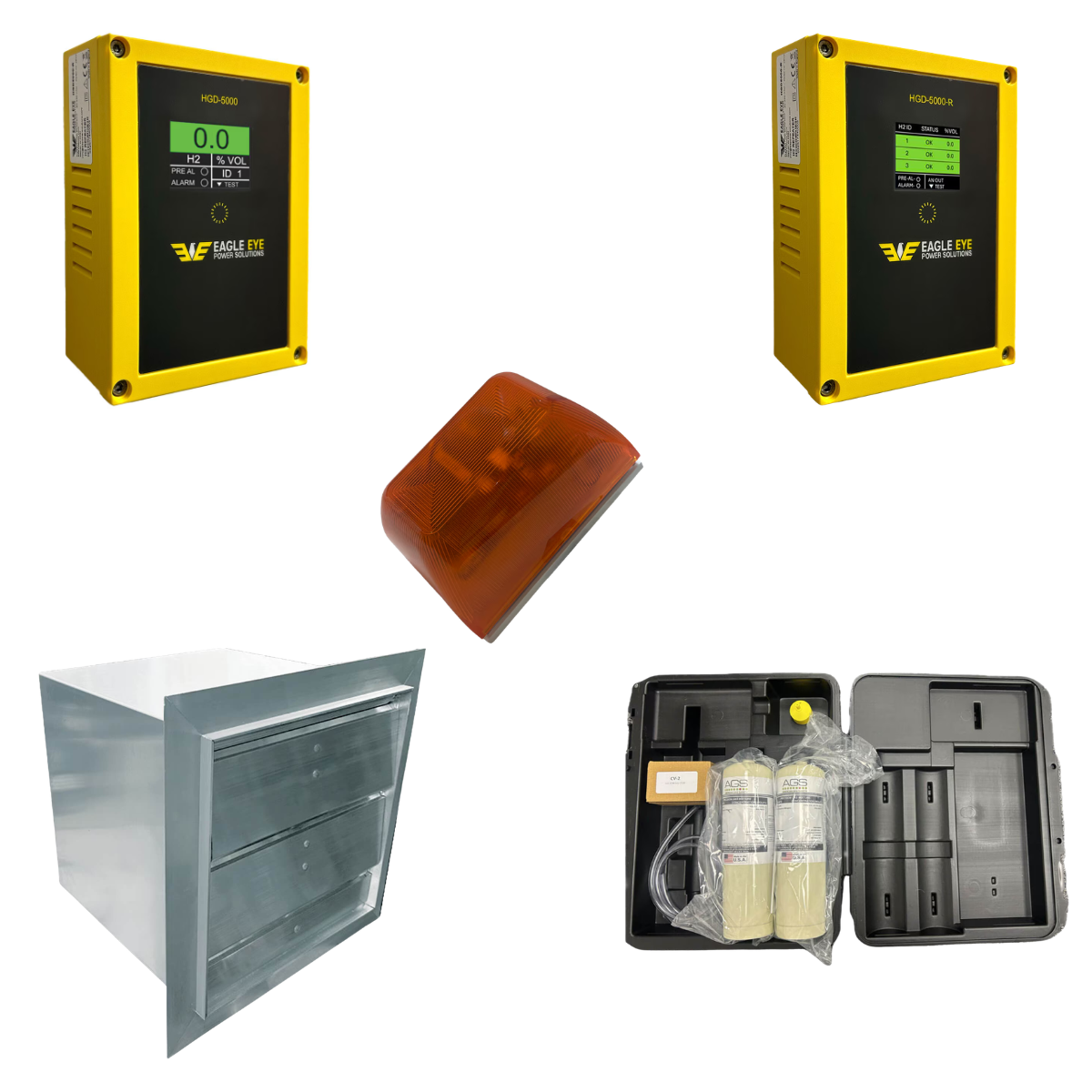

| Kit Components | HGD-5000 Hydrogen Gas Detector, VS-12-110VAC Exhaust Fan, EE-TEST-H-17L-KIT Bump Test Kit, HGD-AAB-A Strobe Alarm, HGD-5000-R Repeater Mimic Panel |
| Target Gas | Hydrogen (H₂) – 1% Vol (warning), 2% Vol (alarm) |
| Detector Lifespan | 10 years (replaceable sensor) |
| Detector Outputs | (2) Internal relays, (2) analog outputs, external strobe output |
| Alarm Delay | 4-second delay to prevent false activation |
| Detector Power Requirements | 110 VAC, 24 VAC, 18–60 VDC |
| Detector Operating Environment | Temperature: -10 – 40 °C (14 – 104 °F) |
| Detector Calibration | Factory calibrated |
| Fan Airflow | 1050 CFM |
| Fan Voltage | 110 VAC |
| Fan Construction | Durable all-metal design |
| Test Kit Contents | (2) 17L hydrogen gas canisters, regulator, tubing, applicator cone |
| Test Kit Function | Reusable bump testing solution |
| Repeater Function | Remote monitoring of alarms and system status |
| System Function | Detects hydrogen gas, activates ventilation, enables testing, and provides remote monitoring |
| Ideal Use Cases | Battery rooms, substations, data centers, telecom facilities, industrial and remote installations |
| Warranty | 5 years |
Resources & Support
Product Literature
Support Documents
FAQs
What is included in the HGD-5000-ST-R system?
The system includes the , , , , and a .
What does the repeater do?
The provides remote visibility into the hydrogen gas detection system, allowing users to monitor alarms and system status from a more accessible location.
How does the system respond to hydrogen gas buildup?
The detects hydrogen gas levels and uses internal relays to activate alarms and the ventilation fan, helping remove hazardous gas from the environment.
What airflow does the exhaust fan provide?
The delivers 1050 CFM of airflow, supporting effective removal of hydrogen and other gases from enclosed spaces.
Why is bump testing included?
The allows technicians to verify detector response, ensuring the system is functioning correctly and ready to respond to gas events.
Is the bump test kit reusable?
Yes, the regulator, tubing, and applicator cone are reusable, and the support multiple testing cycles.
What environments is this system designed for?
This system is ideal for battery rooms, substations, data centers, telecom facilities, and industrial spaces where hydrogen gas may accumulate.
Does this system support remote monitoring?
Yes, the included enables remote monitoring, making it easier to manage systems installed in elevated or restricted-access locations.
