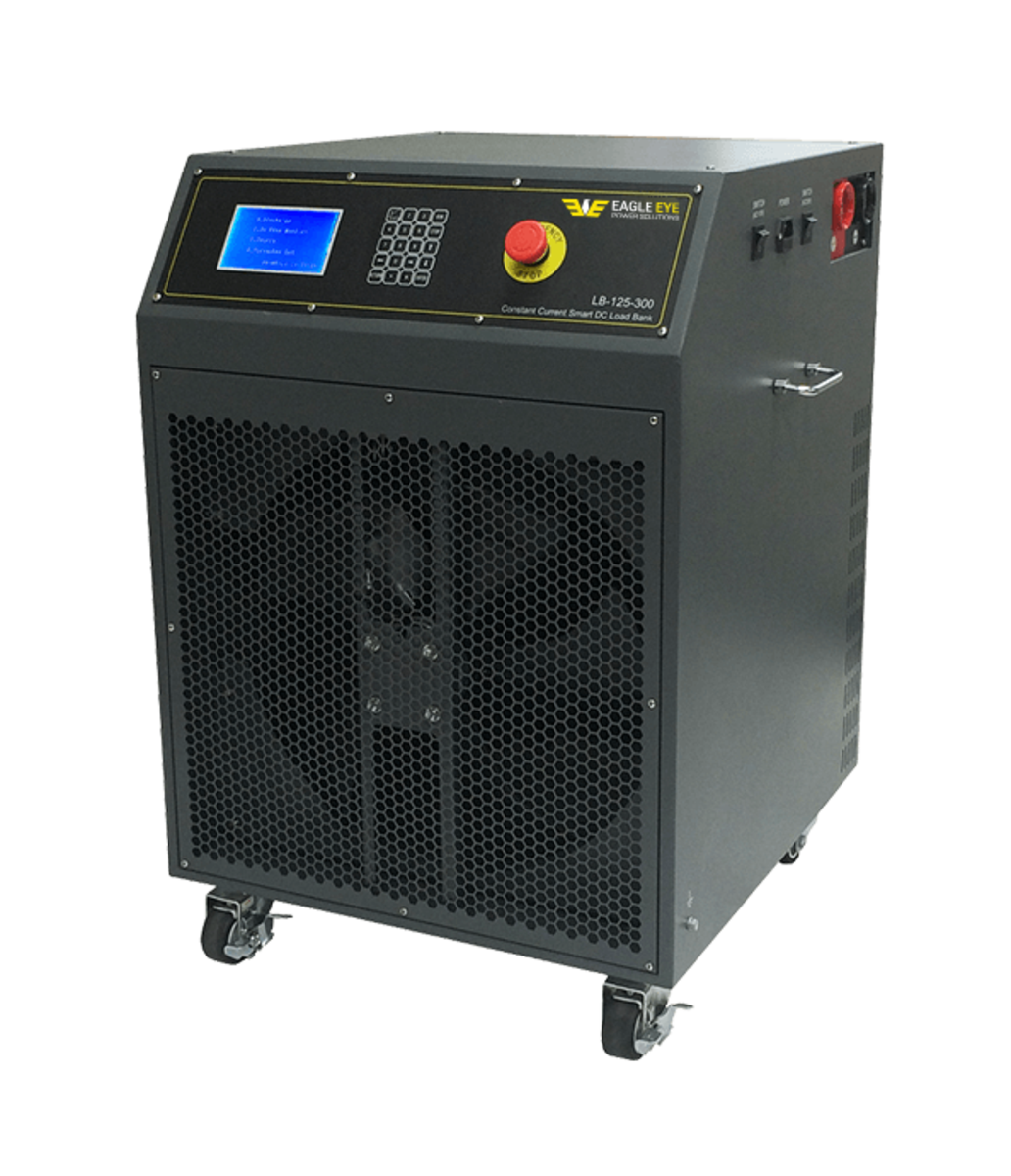

LB-48-300-CCD LB-Series Constant Current DC Load Bank with Data Software
Overview
The LB-48-300-CCD LB-Series Constant Current DC Load Bank with Data Software from Eagle Eye Power Solutions delivers intelligent, stable battery discharge testing with integrated data monitoring and reporting capability.
Built for professional capacity testing, acceptance testing, and preventative maintenance of DC battery systems, the LB-Series maintains constant current automatically throughout the discharge cycle — eliminating the need for manual adjustments during testing.
The CCD model enhances testing visibility and documentation with an advanced backlit 5″ LCD interface and optional reporting software. Users can record discharge data, generate test reports, export results to Microsoft Excel or Word, and remotely monitor test performance.
With built-in protections including overheating shutdown, reverse polarity detection, abnormal disconnection alarms, and automatic cooling fan operation, the LB-48-300-CCD improves technician safety and battery system protection.
Ideal for utilities, telecommunications, UPS systems, CATV, transportation, and industrial applications, the Eagle Eye Power Solutions LB-48-300-CCD offers the reliability of the LB-Series with enhanced data and reporting capability.
Features
- 48V System Testing: Designed specifically for 48V DC battery systems.
- Up to 300A Constant Current Discharge: Intelligent control maintains programmed current without manual adjustment.
- Integrated Data Logging: Records test parameters for detailed analysis and reporting.
- Programmable constant current discharge load.
- Designed for battery capacity, acceptance, and compliance testing.
- 5″ backlit LCD display with advanced interface (CCD model).
- Intelligent current regulation with no adjustment required during discharge.
- Four programmable auto-stop conditions: Test Time, End Voltage, Exceeded Capacity, and Cell Voltage (CCS models).
- Overheat, reverse polarity, and abnormal disconnection protection.
- Automatic fan operation after test completion for thermal protection.
- Auto-sensing discharge voltage range (5 – 600V).
- Optional software for reporting, data graphing, and remote load control.
- Portable, industrial-grade construction for field use.
Specifications
| Model: | LB-48-300-CCD |
| Discharge Voltage Range: | 5 – 600V (Auto-Sensing) |
| Discharge Current Range: | 1 – 2000A (Model configured for 300A class applications) |
| Per Cell Voltage Compatibility: | 1 – 12V VRLA, VLA, NiCad and more |
| Accuracy: | Current: ±1% / Voltage: ±1% |
| Resolution: | Current: 0.1A / Voltage: 0.1V |
| Data Transfer: | RS-232, USB |
| Display: | 5” Backlit LCD (CCD Model) |
| Operating Temperature: | 0 – 40 °C (32 – 104 °F) |
| Power Requirements: | 110/220 VAC 50/60 Hz |
| Available Sizes: | Small through XXX-Large (varies by configuration) |
Resources & Support
Product Literature
Support Documents
Videos
FAQs
What does the CCD designation mean?
The CCD model includes an advanced 5” LCD display and expanded data capability for enhanced monitoring, reporting, and discharge test visibility.
What is the LB-48-300-CCD used for?
The LB-48-300-CCD is used for constant current discharge testing of DC battery systems to verify capacity, performance, and compliance requirements.
Does this model support data reporting?
Yes. Optional software allows users to record test data, generate reports, export to Microsoft Excel or Word, and remotely monitor load control.
Is constant current maintained automatically?
Yes. Intelligent regulation ensures the discharge current remains constant throughout the test without operator adjustment.
What safety protections are included?
The unit includes overheating shutdown, reverse polarity detection, abnormal disconnection alarms, and automatic post-test cooling fan operation.
