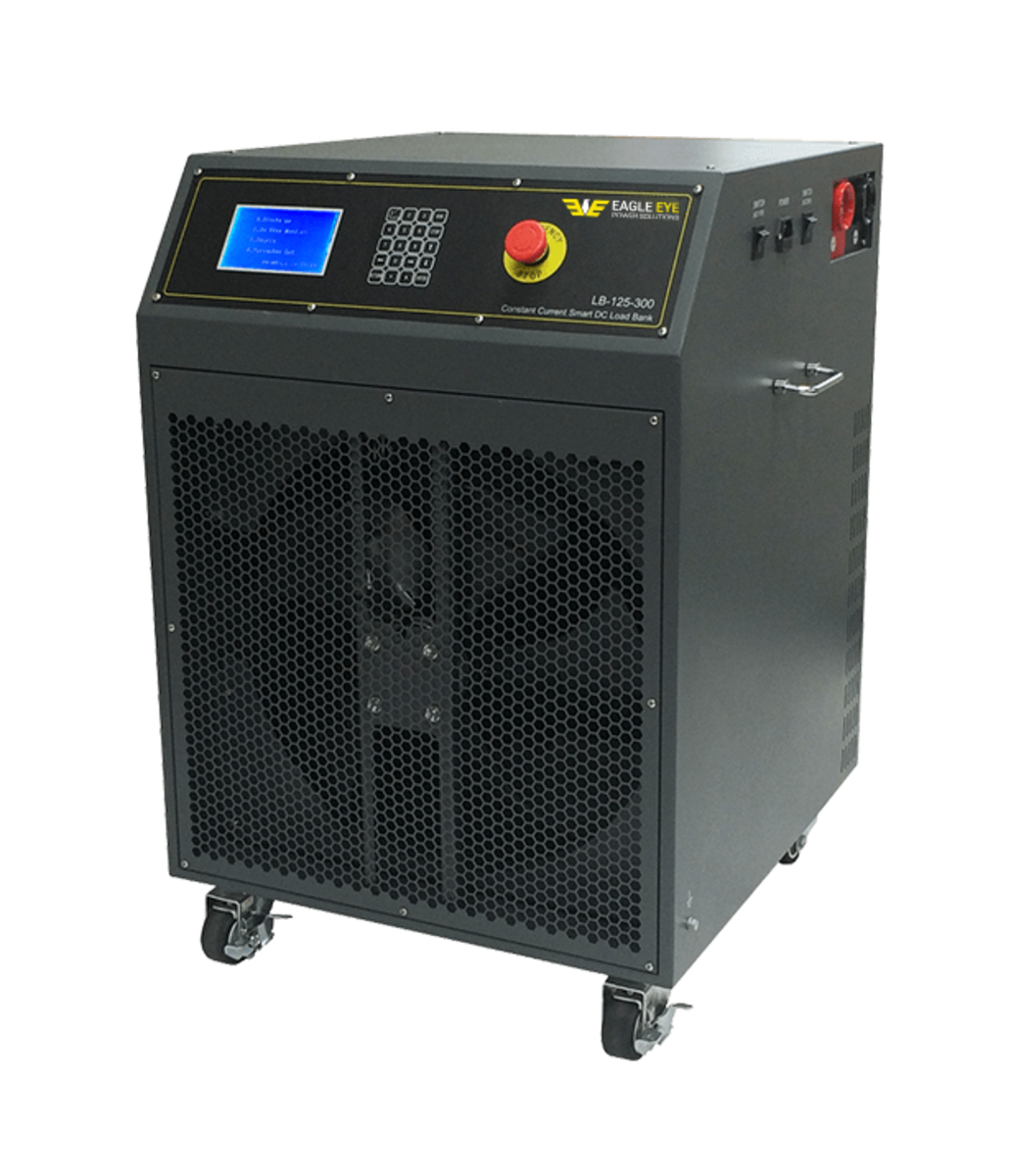

LB-125-300-CCD LB-Series DC Load Bank with Data & Software
Overview
The Eagle Eye Power Solutions LB-125-300-CCD LB-Series DC Load Bank with Data & Software is designed for constant current discharge testing of 125V stationary battery systems up to 300 amps. Built for utilities, telecom facilities, UPS systems, and industrial DC applications, this model combines reliable discharge performance with integrated data acquisition and software reporting capabilities.
The LB-125-300-CCD maintains a stable programmed current throughout the test using intelligent constant current control technology, eliminating the need for manual adjustment. Integrated data logging and included software enable detailed test documentation, real-time monitoring, and report exporting to Microsoft Excel and Word.
Four programmable discharge auto-stop conditions — Test Time, End Voltage, Exceeded Capacity, and Cell Voltage (CCS functionality) — ensure controlled and repeatable testing. Built-in safety protections automatically stop the discharge in the event of overheating, abnormal battery disconnection, or improper polarity detection.
Features
- 125V System Testing: Designed specifically for 125V DC battery systems.
- Up to 300A Constant Current Discharge: Intelligent control maintains programmed current without manual adjustment.
- Integrated Data Logging: Records test parameters for detailed analysis and reporting.
- Software Package Included: Export reports to Microsoft Excel and Word, generate graphs, and manage test data.
- Four Auto-Stop Conditions: Test Time, End Voltage, Exceeded Capacity, and Cell Voltage (CCS functionality).
- Built-In Safety Protections: Automatic shutdown for overheating, improper polarity, or abnormal battery disconnection.
- Auto-Sensing Voltage: Operates within 5–600V DC range.
- Automatic Cooling System: Fans continue operation after test completion for heat protection.
- Parameter Memory: Saves previously used test settings when powered off.
- Data Transfer Ports: RS-232 and USB connectivity for software integration.
Specifications
| Nominal System Voltage: | 125 VDC |
| Discharge Voltage Range: | 5 – 600V (Auto-Sensing) |
| Discharge Current Range: | 1 – 300A |
| Per Cell Voltage Type: | 1 – 12V VRLA, VLA, NiCad, and similar chemistries |
| Accuracy: | Current: ±1% / Voltage: ±1% |
| Resolution: | Current: 0.1A / Voltage: 0.1V |
| Data Transfer: | RS-232, USB |
| Display: | Backlit LED Display (CCD Model with Software Integration) |
| Operating Environment: | 0 – 40 °C (32 – 104 °F) |
| Power Requirements: | 110/220 VAC 50/60 Hz |
| Dimensions: | Varies by enclosure size |
| Weight: | Varies by enclosure size |
Resources & Support
Product Literature
Support Documents
Videos
FAQs
What makes the LB-125-300-CCD different from standard CC models?
The CCD model includes integrated data logging and software capabilities, allowing users to export reports, generate graphs, and manage discharge test data electronically.
Is this load bank suitable for 125V substation batteries?
Yes. The LB-125-300-CCD is specifically designed for 125V DC battery systems commonly used in substations, telecom sites, and industrial facilities.
Can test results be exported for compliance documentation?
Yes. The included software package allows exporting test data to Microsoft Excel and Word, supporting documentation requirements for compliance and maintenance programs.
What safety protections are built into the unit?
The load bank automatically stops discharge if overheating, improper polarity, or abnormal battery disconnection is detected. Programmable auto-stop conditions also enhance protection.
Does this unit support cell monitoring?
Cell voltage monitoring functionality is available on CCS-compatible configurations within the LB-Series.
