EEEBC24V 24V BC-2500 Emergency Battery Charger
Overview
The EEEBC24V 24V BC-2500 Emergency Battery Charger is a portable stationary float battery charger designed to support critical 24VDC battery systems during emergency outages, charger failures, maintenance events, or temporary power restoration needs.

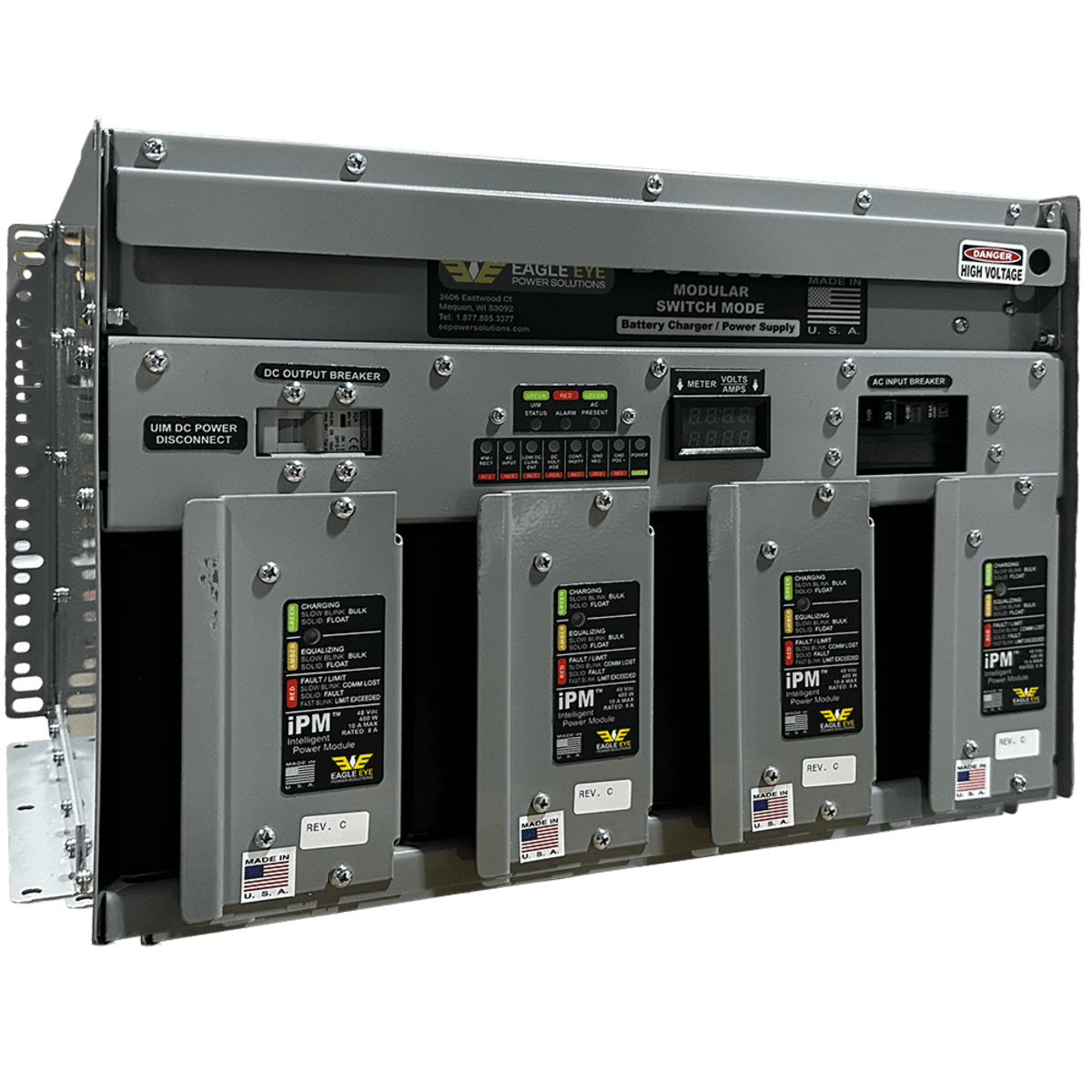

Built on the Eagle Eye BC-2500 platform, this emergency charger combines high-availability charging architecture with the flexibility of a rugged travel case. The result is a durable, field-ready solution that can be transported, shipped, or staged for rapid deployment without requiring a DOT trailer.

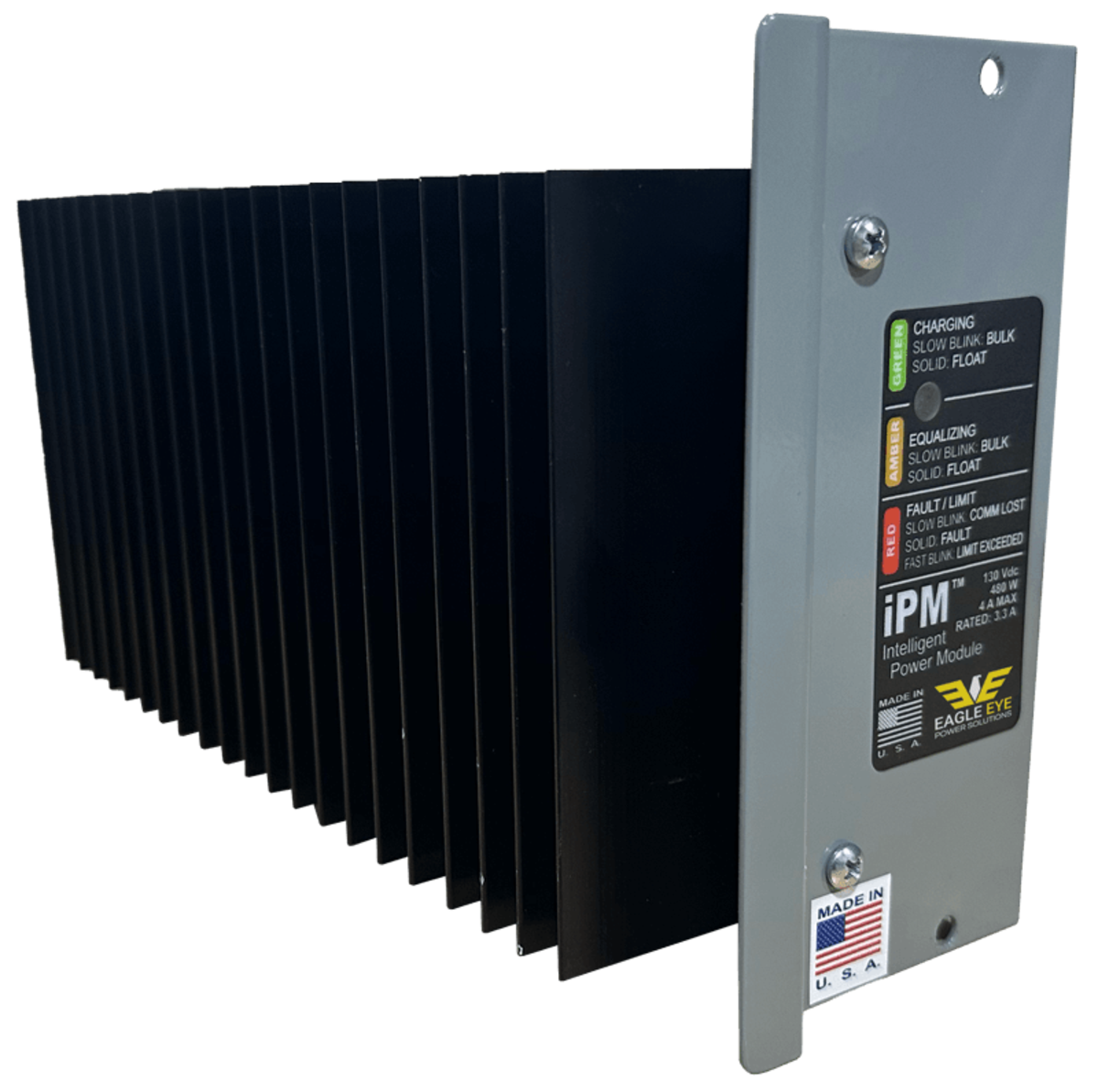

The 24V model includes four iPM power modules standard and provides up to 40A of DC output current. Low DC output ripple, high-efficiency operation, conformal coated circuit boards, convection cooling, advanced alarming, and network communication capabilities make it a dependable solution for utility, industrial, UPS, telecom, and critical DC power environments.
With automatic universal single-phase AC input, included DC cables with proprietary strain relief, and support for Ethernet-based alarming and communication, the EEEBC24V helps reduce downtime and makes emergency battery charging less stressful when dependable DC power is needed quickly.
Features
- 24VDC emergency battery charger built on the BC-2500 platform
- Provides up to 40A DC output with four iPM power modules standard

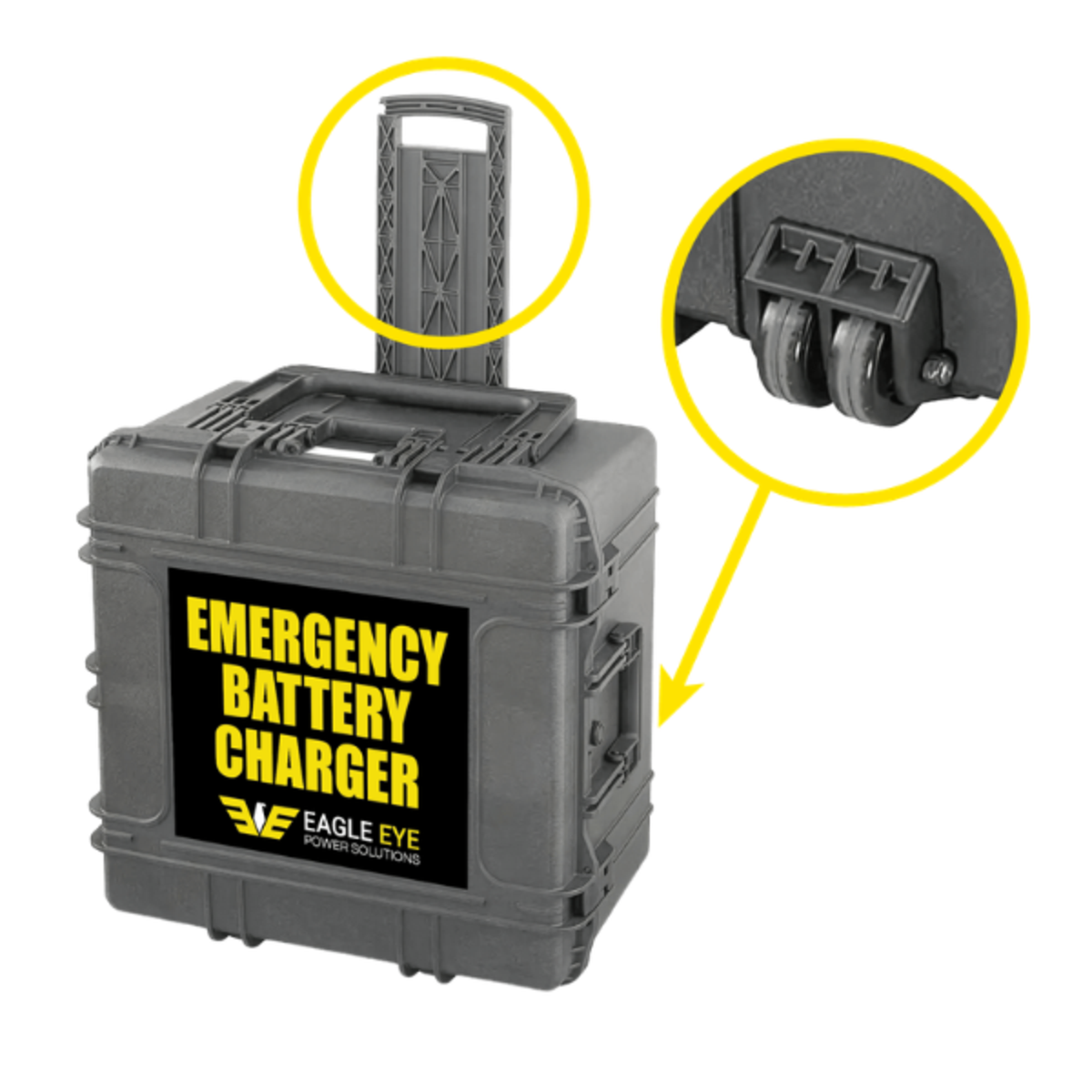

- Rugged travel case design for transport, shipping, and field deployment
- Less than 80 lbs for easier handling compared to trailer-based solutions
- Automatic universal single-phase AC input
- Low DC output ripple with battery eliminator option standard
- AC/DC powered UIM for continued operation without AC power
- High-quality conformal coated circuit boards for moisture protection
- Convection cooled design with no fan failure points
- Wide operating temperature range from -40°C to 70°C
- High efficiency greater than 93% at 240 VAC full load
- Battery temperature compensation with controlled limits
- Digital amp and volt meter standard
- Individual critical dry contact alarms
- SNMP alarming and NTP date/time synchronization via Ethernet
- Supports SNMP traps, and internal web server communication
- UL, CSA, and CEC certified
- Meets IEEE Std 2405-2022
Specifications
| Part Number: | EEEBC24V |
| Product: | 24V BC-2500 Emergency Battery Charger |
| Platform: | BC-2500 stationary float battery charger |
| Nominal DC Output Voltage: | 24 VDC |
| DC Output Voltage Range: | 10 – 40 VDC |
| Total Output Current: | Up to 40 A with four iPM power modules |
| Power Modules Included: | 4 iPMs standard |
| Maximum Power per iPM: | 400 W |
| Maximum Current per iPM: | 10 A |
| Rated Current per iPM: | 10 A |
| AC Input Voltage, Rated: | 100 – 240 VAC |
| AC Input Voltage, Operating: | 90 – 264 VAC; reduced power below 100 VAC |
| AC Input Frequency, Rated: | 50 – 200 Hz |
| AC Input Frequency, Operating: | 45 – 205 Hz |
| AC Input Phase: | Single-phase |
| Efficiency: | > 91% at 120 VAC full load; > 93% at 240 VAC full load |
| Power Factor: | > 0.98 at 120 VAC full load; > 0.96 at 240 VAC full load |
| AC Input Protection: | Current limit, surge, transient inrush, under voltage, over voltage |
| DC Output Protection: | Current limit, short circuit, reverse polarity, surge, transient lightning protection |
| Alarms: | Individual critical dry contact alarms; alarms can be individually enabled, disabled, delayed, and assigned |
| Communication: | SNMP traps, internal web server |
| Mounting: | Wall, shelf, floor, EIA 19-inch rack, front or rear |
| Operating Environment: | -40 – 70 °C (-40 – 158 °F) |
| Storage Temperature: | -55 – 85 °C (-67 – 185 °F) |
| Humidity Range: | 0 – 95%, non-condensing |
| 4-Slot Chassis Dimensions: | 17.125 x 12.78125 x 17.28125 in. (435 x 325 x 439 mm) |
| 4-Slot Chassis Weight: | 28 lbs. (12.7 kg) unloaded |
| Portable Case: | Robust travel case; complete system less than 80 lbs. |
| Included Cable: | DC cable with proprietary strain relief |
| Certifications: | UL, CSA, and CEC certified |
| Standards: | Meets IEEE Std 2405-2022 |
Resources & Support
BC-2500 Product Literature
Technical Information
Calculators
Support Documents
Videos
FAQs
What is the EEEBC24V Emergency Battery Charger used for?
The EEEBC24V is used to provide temporary or emergency charging support for 24VDC battery systems during outages, charger failures, maintenance, commissioning, or other critical power events.
How much output current does the EEEBC24V provide?
The EEEBC24V provides up to 40A of DC output current using four standard iPM power modules.
Is the EEEBC24V portable?
Yes. The charger is housed in a robust travel case and weighs less than 80 lbs., making it easier to transport, ship, and deploy without requiring a DOT trailer.
What AC input does this charger require?
The EEEBC24V uses automatic universal single-phase AC input. Rated input voltage is 100 – 240 VAC, with an operating range of 90 – 264 VAC.
Does the EEEBC24V support remote communication?
Yes. Communication options include SNMP traps, NTP synchronization, an internal web server and Dry Contact alarm points.
Is the EEEBC24V suitable for harsh environments?
Yes. The charger uses conformal coated circuit boards for moisture protection, convection cooling with no fan failure points, and operates across a wide temperature range from -40°C to 70°C.
What standards does the EEEBC24V meet?
The EEEBC24V is UL, CSA, and CEC certified and meets IEEE Std 2405-2022.
