EEEBC130V 130V BC-2500 Emergency Battery Charger
Overview
The EEEBC130V BC-2500 is a portable emergency battery charger developed to maintain critical 130VDC battery systems when permanent charging equipment is unavailable. It is well suited for outages, scheduled service, commissioning work, charger replacement, and temporary DC power support.
Engineered around Eagle Eye’s BC-2500 charging platform, the unit packages dependable float-charging performance inside a durable travel case. Its compact, field-ready configuration allows it to be stored, shipped, and placed into service quickly without the transportation requirements of a DOT trailer.
Four iPM power modules are included with the 130V model, providing up to 16A of DC output. High operating efficiency, low output ripple, conformal coated electronics, fanless convection cooling, integrated alarms, and network connectivity support reliable operation in utility, UPS, industrial, and other mission-critical DC applications.
Universal single-phase AC input automatically accommodates a wide range of power sources, while included DC cables with proprietary strain relief simplify field connections. Ethernet-based monitoring and alarm capabilities give operators greater visibility and help accelerate response when backup battery charging is needed.
Features
- 130VDC emergency battery charger built on the BC-2500 platform
- Provides up to 16A DC output with four iPM power modules standard

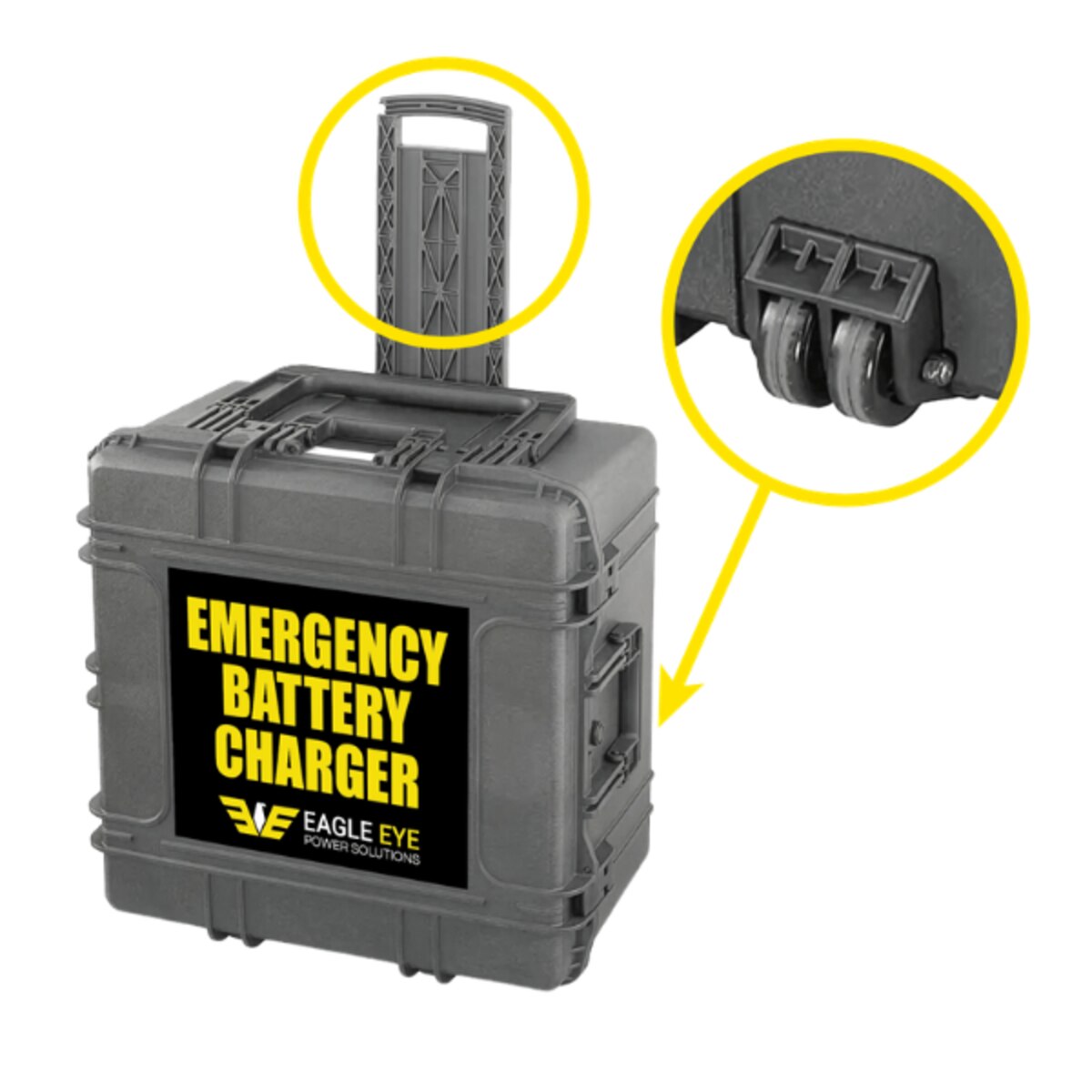

- Rugged travel case design for transport, shipping, and field deployment
- Less than 80 lbs for easier handling compared to trailer-based solutions
- Automatic universal single-phase AC input
- Low DC output ripple with battery eliminator option standard
- AC/DC powered UIM for continued operation without AC power
- High-quality conformal coated circuit boards for moisture protection
- Convection cooled design with no fan failure points
- Wide operating temperature range from -40°C to 70°C
- High efficiency greater than 93% at 240 VAC full load
- Battery temperature compensation with controlled limits
- Digital amp and volt meter standard
- Individual critical dry contact alarms
- SNMP alarming and NTP date/time synchronization via Ethernet
- Supports SNMP traps, and internal web server communication
- UL, CSA, and CEC certified
- Meets IEEE Std 2405-2022
Specifications
| Part Number: | EEEBC130V |
| Product: | 130V BC-2500 Emergency Battery Charger |
| Platform: | BC-2500 stationary float battery charger |
| Nominal DC Output Voltage: | 130 VDC |
| DC Output Voltage Range: | 75 – 150 VDC |
| Total Output Current: | Up to 16 A with four iPM power modules |

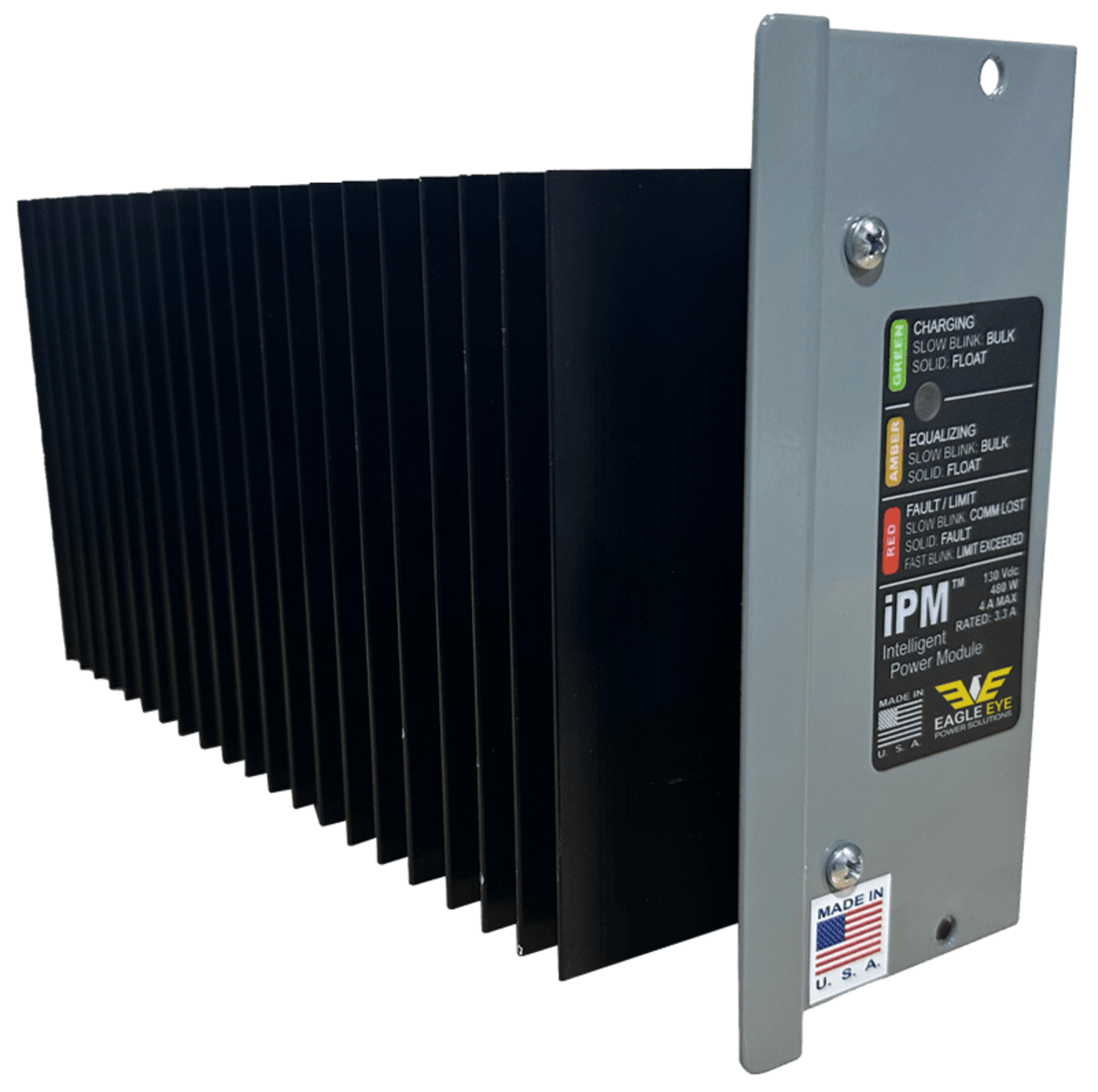

| Power Modules Included: | 4 iPMs standard |
| Maximum Power per iPM: | 480 W |
| Maximum Current per iPM: | 4 A |
| Rated Current per iPM: | 3.3 A |
| AC Input Voltage, Rated: | 100 – 240 VAC |
| AC Input Voltage, Operating: | 90 – 264 VAC; reduced power below 100 VAC |
| AC Input Frequency, Rated: | 50 – 200 Hz |
| AC Input Frequency, Operating: | 45 – 205 Hz |
| AC Input Phase: | Single-phase |
| Efficiency: | > 91% at 120 VAC full load; > 93% at 240 VAC full load |
| Power Factor: | > 0.98 at 120 VAC full load; > 0.96 at 240 VAC full load |
| AC Input Protection: | Current limit, surge, transient inrush, under voltage, over voltage |
| DC Output Protection: | Current limit, short circuit, reverse polarity, surge, transient lightning protection |
| Alarms: | Individual critical dry contact alarms; alarms can be individually enabled, disabled, delayed, and assigned |
| Communication: | SNMP traps, internal web server |
| Mounting: | Wall, shelf, floor, EIA 19-inch rack, front or rear |
| Operating Environment: | -40 – 70 °C (-40 – 158 °F); reduced power mode above 50 °C |
| Storage Temperature: | -55 – 85 °C (-67 – 185 °F) |
| Humidity Range: | 0 – 95%, non-condensing |
| 4-Slot Chassis Dimensions: | 17.125 x 12.78125 x 17.28125 in. (435 x 325 x 439 mm) |
| 4-Slot Chassis Weight: | 28 lbs. (12.7 kg) unloaded |
| Portable Case: | Robust travel case; complete system less than 80 lbs. |
| Included Cable: | DC cable with proprietary strain relief |
| Certifications: | UL, CSA, and CEC certified |
| Standards: | Meets IEEE Std 2405-2022 |
Resources & Support
BC-2500 Product Literature
Technical Information
Calculators
Support Documents
Videos
FAQs
When would the EEEBC130V be used?
The EEEBC130V supplies temporary charging for 130VDC stationary battery systems when the primary charger is offline or unavailable. Typical uses include emergency response, planned maintenance, commissioning, equipment replacement, and temporary DC power restoration.
What DC charging capacity does the EEEBC130V offer?
The charger delivers up to 16A of DC output through four standard iPM power modules.
How is the EEEBC130V transported to a jobsite?
The complete charger is installed in a durable travel case weighing less than 80 lbs. This compact configuration simplifies storage, shipment, and field deployment without the need for a DOT-regulated trailer.
Which AC power sources are compatible with the EEEBC130V?
Automatic universal single-phase input allows the charger to operate from a variety of available AC sources. The rated input is 100–240 VAC, with an allowable operating range of 90–264 VAC.
What remote monitoring features are included?
The EEEBC130V supports Ethernet-based monitoring through its internal web server, along with SNMP trap notifications and NTP time synchronization.
How does the charger handle demanding field conditions?
Conformal coated circuit boards provide added moisture resistance, while fanless convection cooling removes mechanical fan failure points. The unit is designed for operation in temperatures from -40°C to 70°C.
Which certifications and industry standards apply?
The EEEBC130V carries applicable UL, CSA, and CEC certifications and is designed to meet IEEE Std 2405-2022.
