• DLV-Max Battery Testing Kit

DLV-Max Battery Testing Kit

(0)No Reviews yet

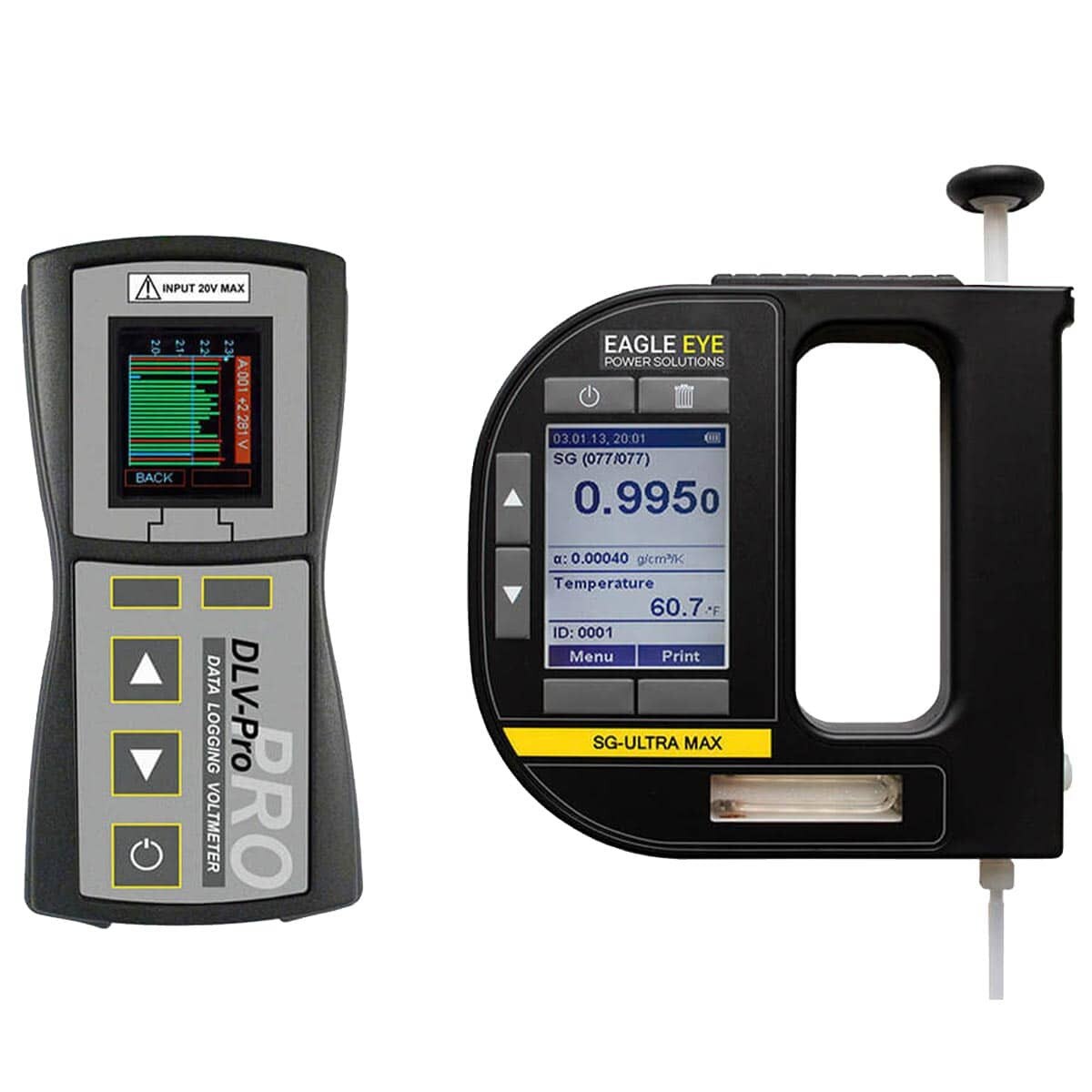

The DLV-Max Battery Testing Kit includes the DLV-Pro data logging voltmeter with the SG-Ultra Max digital hydrometer for a complete solution to voltage and specific gravity testing. The DLV-Pro measures and records cell voltages in less than 1 second, enabling rapid testing of battery cell voltages. Voltages are recorded in two formats: 8 strings of 256 or 20 strings of 48 readings. Specific gravity and temperature readings measured from the SG-Ultra Max are directly uploaded to the DLV-Max in 8 strings of 256 format. Both voltage and specific gravity readings can be combined into a single report. The DLV-Max kit can also be used to perform a full discharge test on up to 256 cells by recording up to 11 time-stamped voltage readings for each cell, along with time-stamped load current readings and initial and/or final SG readings via the SG-Ultra Max. All test data can be uploaded to a PC using the included Winmeter 5.1 Battery Analysis Software.

Kit Includes:

  • DLV-Pro Voltage Tester
  • Voltage Test Leads
  • SG-Ultra Max Digital Hydrometer
  • Carrying Case
  • Winmeter Analysis Software
  • Record, view, & analyze cell voltage, SG, & temperature readings
  • Record voltage in either 8 strings of 256 or 20 strings of 48 format
  • Record SG in 8 strings of 256 format
  • Perform a full discharge test & analyze results on-site during the test
  • Easily transfer data files to Winmeter 5.1 battery analysis software
  • Export test data to PDF reports or Excel spreadsheets
  • Replay animated discharge tests
