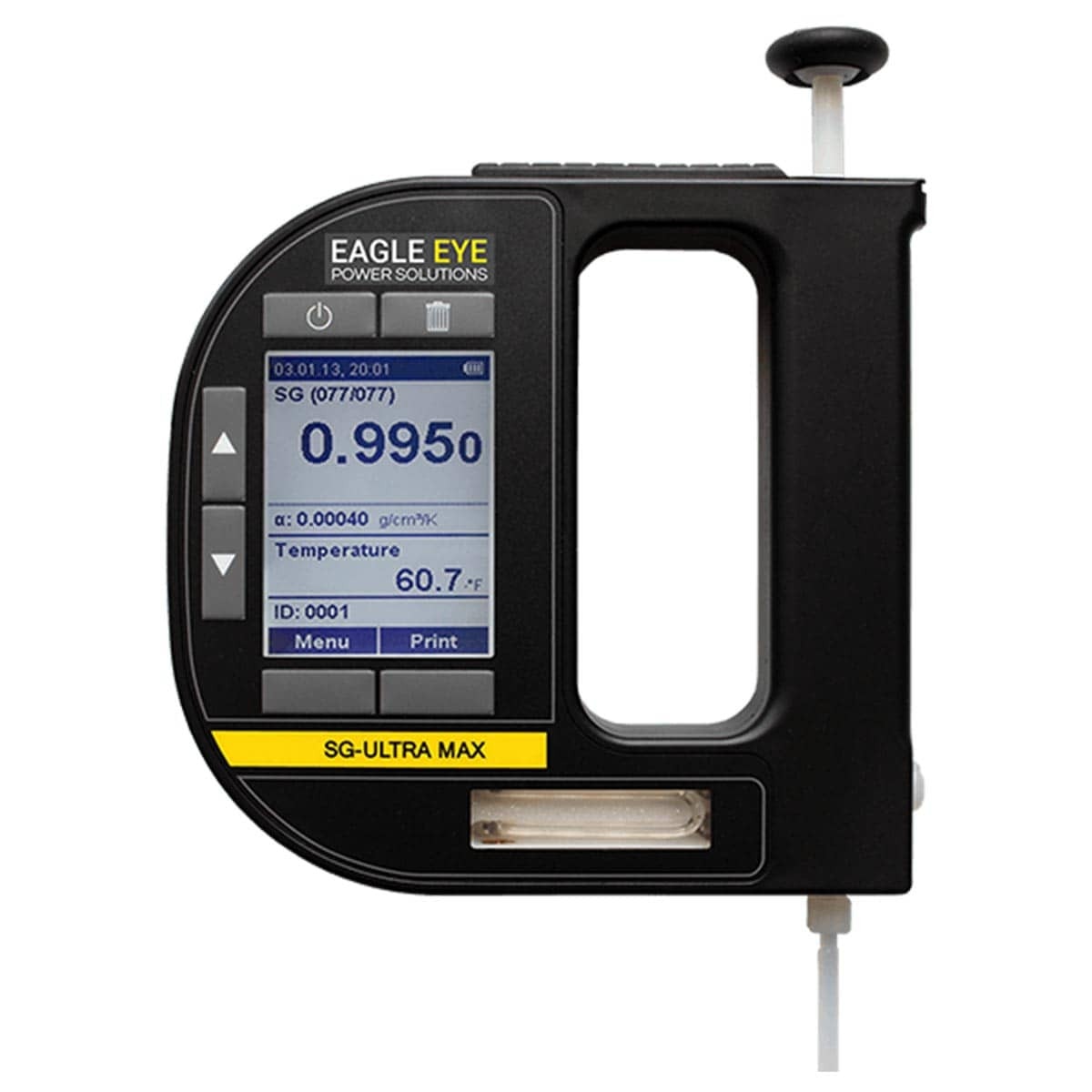

SG-Ultra Max Digital Battery Hydrometer
The SG-Ultra Max Digital Battery Hydrometer / compact density meter measures the density and density-related values of your sample within seconds. Results appear on the backlit LCD screen and are ready for storage, printout or export to a PC. The lightweight and robust design enable on-site operation in a wide range of environments. Completely sealed, pump spills do not enter the instrument. The SG-Ultra Max Digital Battery Hydrometer and portable density meter feature leak-proof housing for operation in industrial and field applications including battery testing for utilities and telecoms, food & beverage testing, quality control, biotechnology, and many more. Supported measuring units include density, density at reference temperature, specific gravity, alcohol, API, °Baumé, °Brix, and five programmable custom functions to ensure your measurement requirements.
- Accuracy: 99.999%, tests density and temperature simultaneously
- User-Friendly: Compact, lightweight, and allows for one-hand measurement, automatic temperature compensation
- Robust & Rugged: Comes with protective carrying case. Measuring cell can be exchanged and replaced if necessary
- Bluetooth Communication: Data exchange with a PC and data export to a printer
- Storage: up to 1,024 total measurement results including time stamp and sample ID
Measurement Range: | Density: 0.000 – 2.000 g/cm3 Sample Temperature: 0° – 40°C (32° – 104°F) Viscosity: 0 – 2,000 mPa |
Accuracy: | Density: 0.001 g/cm3 Temperature: ±0.2 °C (±0.4 °F) |
Resolution: | 0.0001 g/cm3 |
Minimum Sample Volume: | 2 mL |
Communication: | IrDA Interface |
Display: | Backlit LCD |
Internal Storage: | 1100 Results |
Operating Environment: | 10 – 50 °C (-15 – 122 °F) |
Power Requirements: | (2) AAA Batteries |
Sample Tube Dimensions: | 142.875 x 3.175 mm / 5.625 x 1/8 in. Diameter *Custom lengths available |
Dimensions: | 229 x 114 x 64 mm (9 x 4.5 x 2.5 in.) |
Weight: | 360 g (12.7 oz.) |
Kit Weight: | 3.6 kg (8 lbs.) |
Kit Dimensions: | 41 x 10 x 20 cm (16 x 14 x 8 in.) |
Product Literature
Support Documents
What is the measurement range of the SG-Ultra Max Plus Digital Hydrometer / Density Meter?
The Density Range is 0.000-3.000 g/cm3
Does the SG-Ultra Max Plus work with my solution?
The SG-Ultra Max Plus works with a vast range of solutions across many unique industries. The best method to verify if the unit will work with your solution is to compare the Ultra Max wetted parts list with a chemical compatibility chart of your solution (parts list found below):
SG Ultra Max Wetted Parts List:
How accurate is the SG-Ultra Max Plus?
The SG-Ultra Max Plus is accurate to 0.001g/cm3 with repeatability of 0.0005.
How does the SG-Ultra Max Plus communicate?
The Ultra Max utilizes Bluetooth and RFID.
What is the measurement range of the SG-Ultra Max Plus?
The density range is 0.000-3.000 g/cm3.
How long does the SG-Ultra Max Plus take to display measurement results?
Measurement times vary depending on unit and sample temperature. The sample will have to equilibrate inside the measuring cell. This process generally takes only a few seconds but, in some situations, may take up to a minute.
How many measurements does they SG-Ultra Max Plus Density Meter store?
The maximum stored results are 1,024.
What file format is the data imported to the PC as?
Data is exported from the SG-Ultra Max Plus as either a CSV or TXT file. This can be viewed using Microsoft Excel or Exmons Ultra Plus software.
What is the maintenance for the SG-Ultra Max Plus digital hydrometer?
Precise measurements demand a well-functioning precision tool. The device should be cleaned after each use. The consumable parts of the Ultra Max should be monitored closely and replaced regularly as needed.
How often should I calibrate my SG-Ultra Max Plus digital hydrometer?
It is recommended to have the unit calibrated annually.
