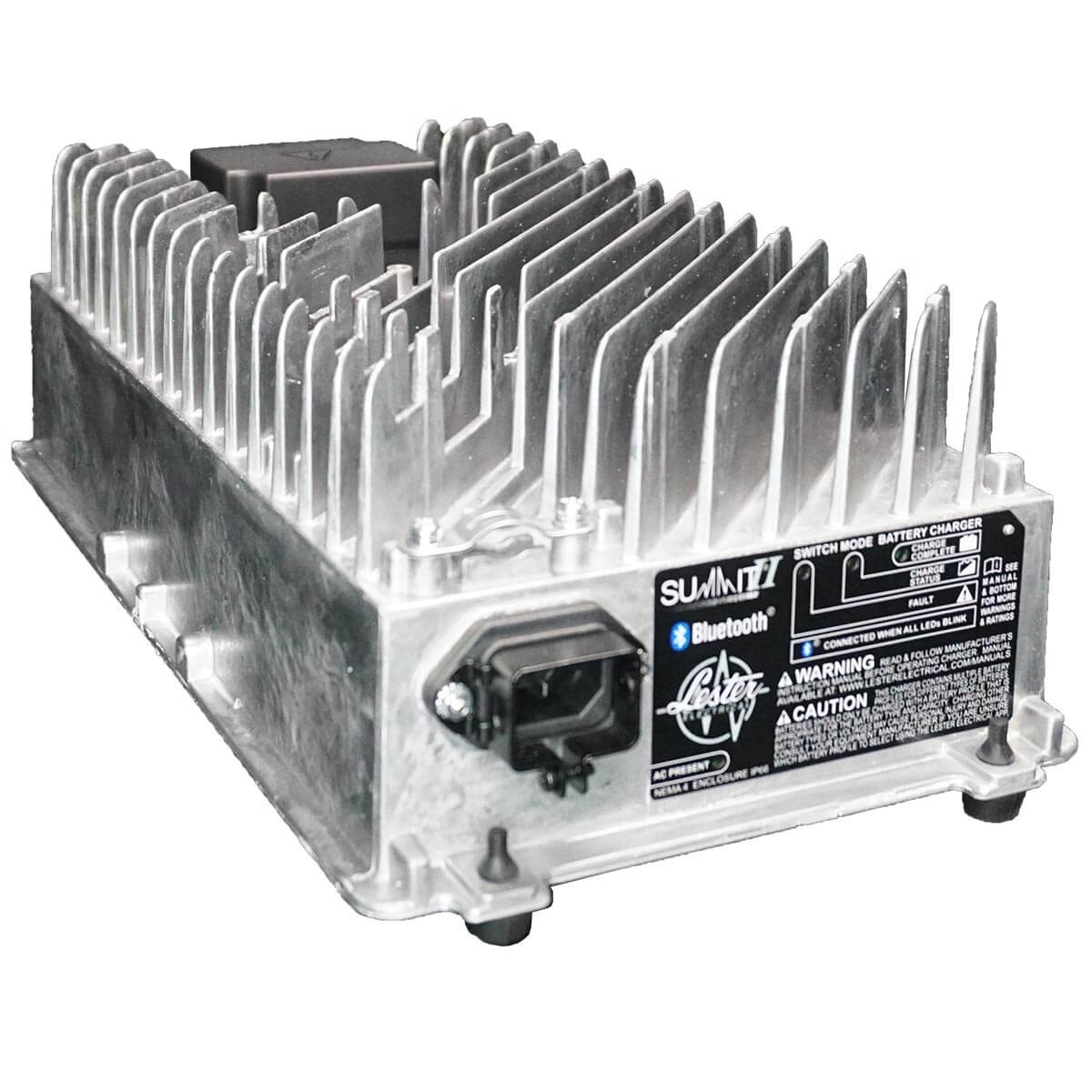

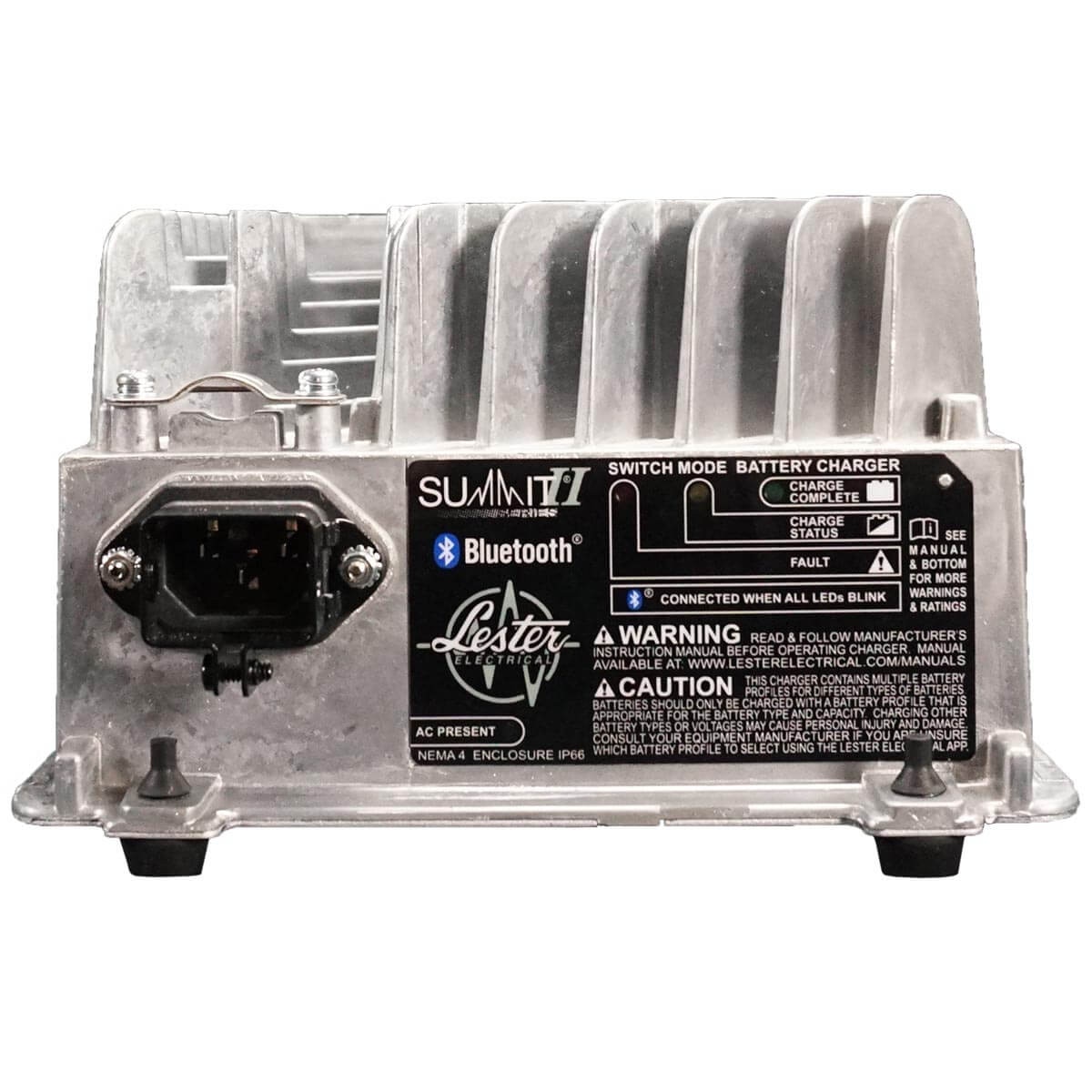

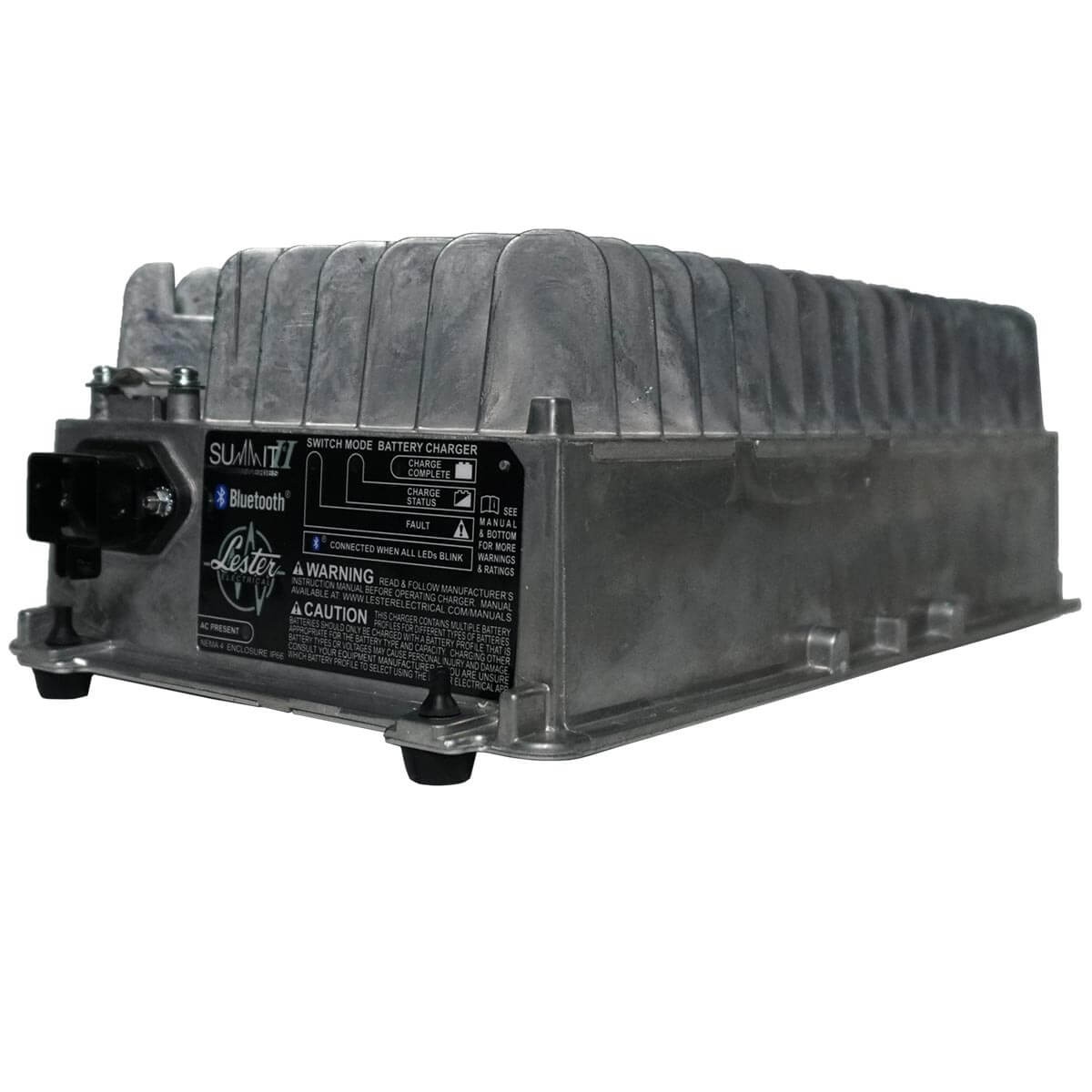

Summit Series II 1050W 24V-48V Motive Battery Charger
Elevate your battery charging with the 1050W Summit Series II (24-48V) charger, a high-performance solution designed for efficiency. Featuring advanced high-frequency switch mode technology, this charger provides fast, efficient charging while minimizing energy consumption. Perfect for both daily use and long-term applications, the Summit Series II is built to boost your battery’s capacity and extend its lifespan.
Ideal for use in:
- Golf Carts
- Aerial Work Platforms (AWPs)
- Industrial Vehicles
- Floor Care Equipment
- Material Handling and Automation
- And much more!
The Summit Series II, equipped with advanced technology and user-friendly management tools, guarantees efficient battery charging, reducing downtime and maintenance costs. Download the ChargerConnect app (, ) today to manage your charging needs from anywhere!
Make the intelligent choice for your battery charging—opt for the 1050W Summit Series II for unmatched reliability, efficiency, and longer battery life.
- High-Frequency Switch Mode Technology: Ensures faster, more energy-efficient charging with reduced heat generation.
- Advanced Charge and Termination Algorithms: Optimizes battery performance by preventing overcharging and extending battery life.
- Bluetooth & Cloud Connectivity: Monitor and manage charging remotely with the ChargerConnect app (, ).
- Real-Time Charge Monitoring: Push charge history to the cloud for easy access and updates from anywhere.
- Multi-Voltage Support: Compatible with 24V, 36V, and 48V batteries for various industrial applications.
- Proprietary Charging Performance: Maximizes battery life and ensures compliance with the latest standards for energy efficiency.
- Versatile Application Use: Ideal for golf carts, industrial vehicles, aerial work platforms, material handling equipment, and floor care equipment.
- Energy-Efficient Design: Reduces power loss and extends the life of both the charger and the battery.
| 1050W Summit Series II Battery Charger - Specifications | |
|---|---|
| AC Input | |
| Voltage Range (Rated) | 100-240 Vac |
| Voltage Range (Operating) | 85-265 Vac (< 108 Vac: reduced power) |
| Frequency (Rated) | 50-60 Hz |
| Frequency (Operating) | 45-65 Hz |
| Phase | Single-phase |
| Current (Maximum) | < 12 A |
| Efficiency | > 91% peak, DOE test procedure, 115 Vac |
| Protection | Current limit, surge, transient, under voltage, over voltage |
| DC Output | |
| Power | 1050 W |
| Voltage (Nominal) | 24 Vdc / 36 Vdc / 48 Vdc |
| Voltage (Maximum) | 36 Vdc / 54 Vdc / 72 Vdc |
| Current (Maximum) | 25 A / 25 A / 22 A |
| Voltage (Min Start-Up) | 10 Vdc |
| Battery Types | Lead-acid (Wet/AGM/Gel), Lithium, Custom |
| Protection | Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage |
| Environmental | |
| Enclosure Rating | IP66, NEMA 4 |
| Operating Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| User & Vehicle Interfaces | |
| Bluetooth | Wireless apps for Apple and Android phones and tablets |
| LED Indicators | Charge Complete (green), Charge Status (yellow), AC Present (blue), Fault (red) |
| Remote LED | Single tri-color; charge complete, charge status, fault |
| Lockout / Interlock | Single or dual wire options |
| Battery Temperature | Input standard; sensor optional |
| CAN Bus Communication | CANopen® and SAE J1939 standard, contact LE sales regarding customized options |
| Wake-up signal | Two wire interface allows vehicle/battery circuitry to wake-up when AC power is present |
| Mechanical | |
| Dimensions (LxWxH) | 336 x 182 x 105 mm (13.203 x 7.171 x 4.141 in) |
| Weight | 10.216 lbs (4.633 Kgs) |
| Cooling | Natural convection (no fan) |
| AC Input Connector | IEC 60320 C16 inlet with cord clamp |
| DC Output Connector | External terminals with cover |
| Lockout Connector | External terminal with cover |
| Battery Temp Connector | External terminal with cover |
| Remote LED Connector | External DB9 (DE9) |
| CAN Bus Connector | External DB9 (DE9) |
| Mounting | Shelf, wall, bulkhead, threaded rod, hook |
| Handle | Carrying handle optional |
| Safety / Regulatory | |
| Efficiency | DOE Code of Federal Regulations, CEC Appliance Efficiency Regulations, Title 20; 10 CFR Part 430 |
| Safety / Emissions | UL recognized/listed; cUL certied; FCC Part 15; ICES-003; EN safety, emissions, immunity; CE Certied; ACMA RCM (C-Tick) |
