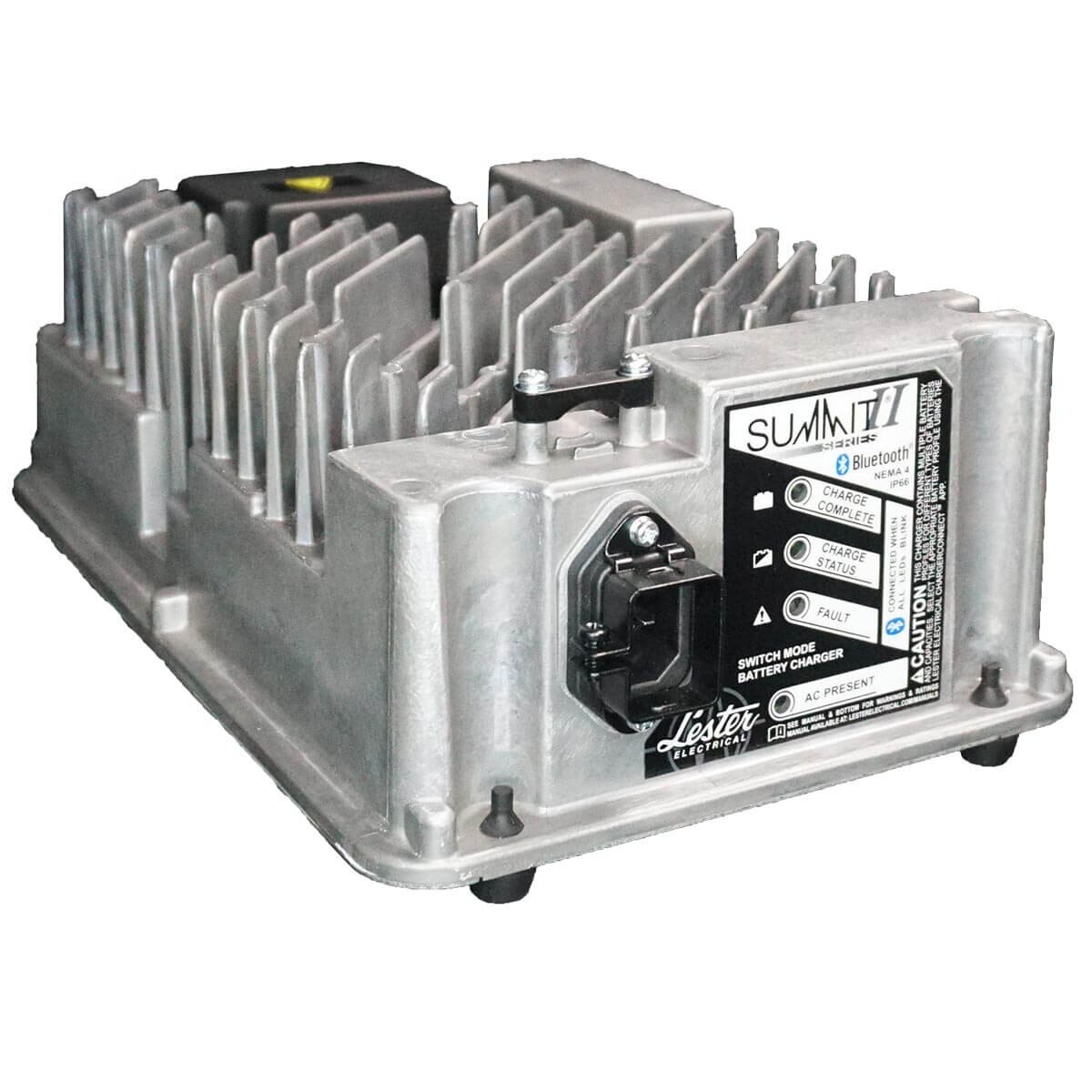

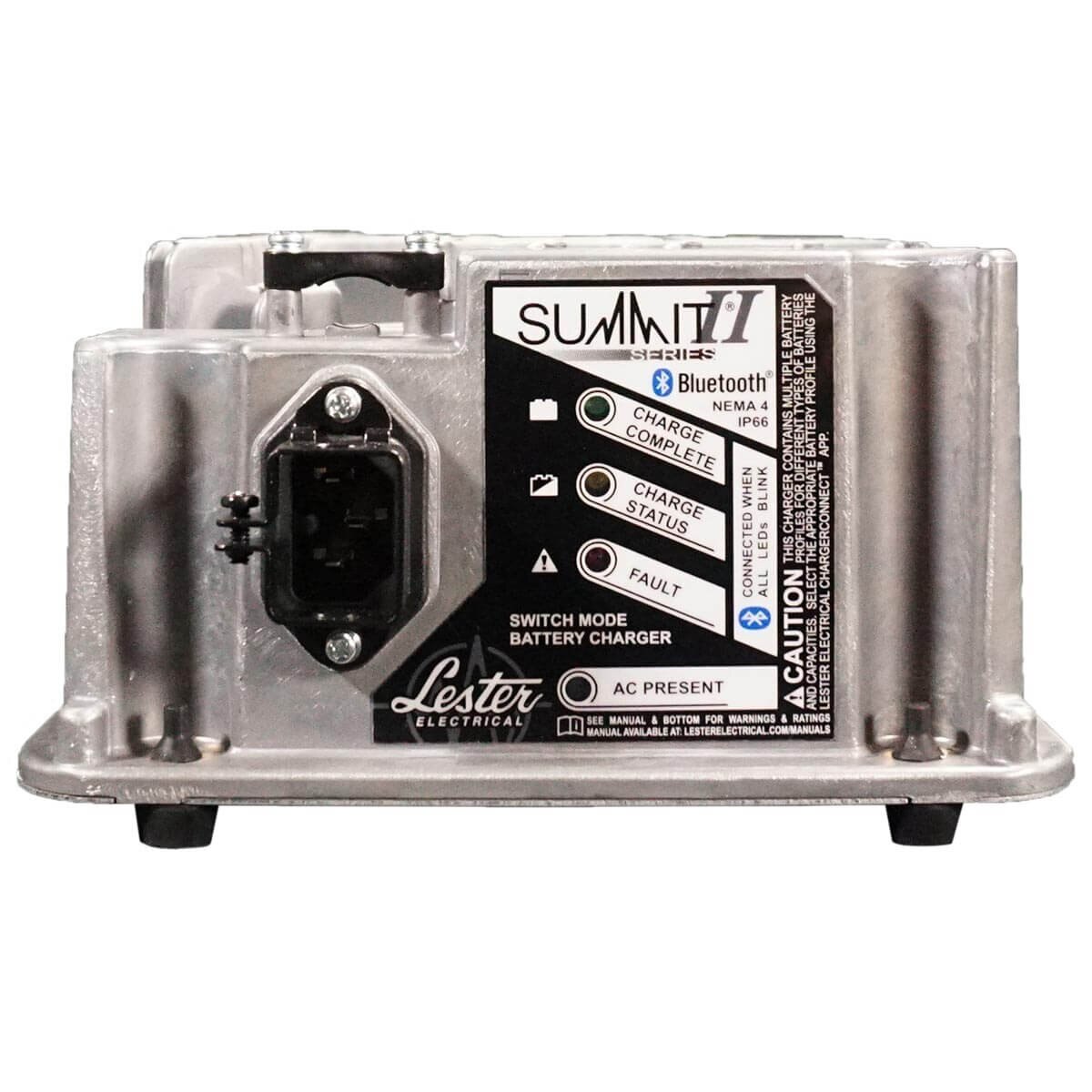

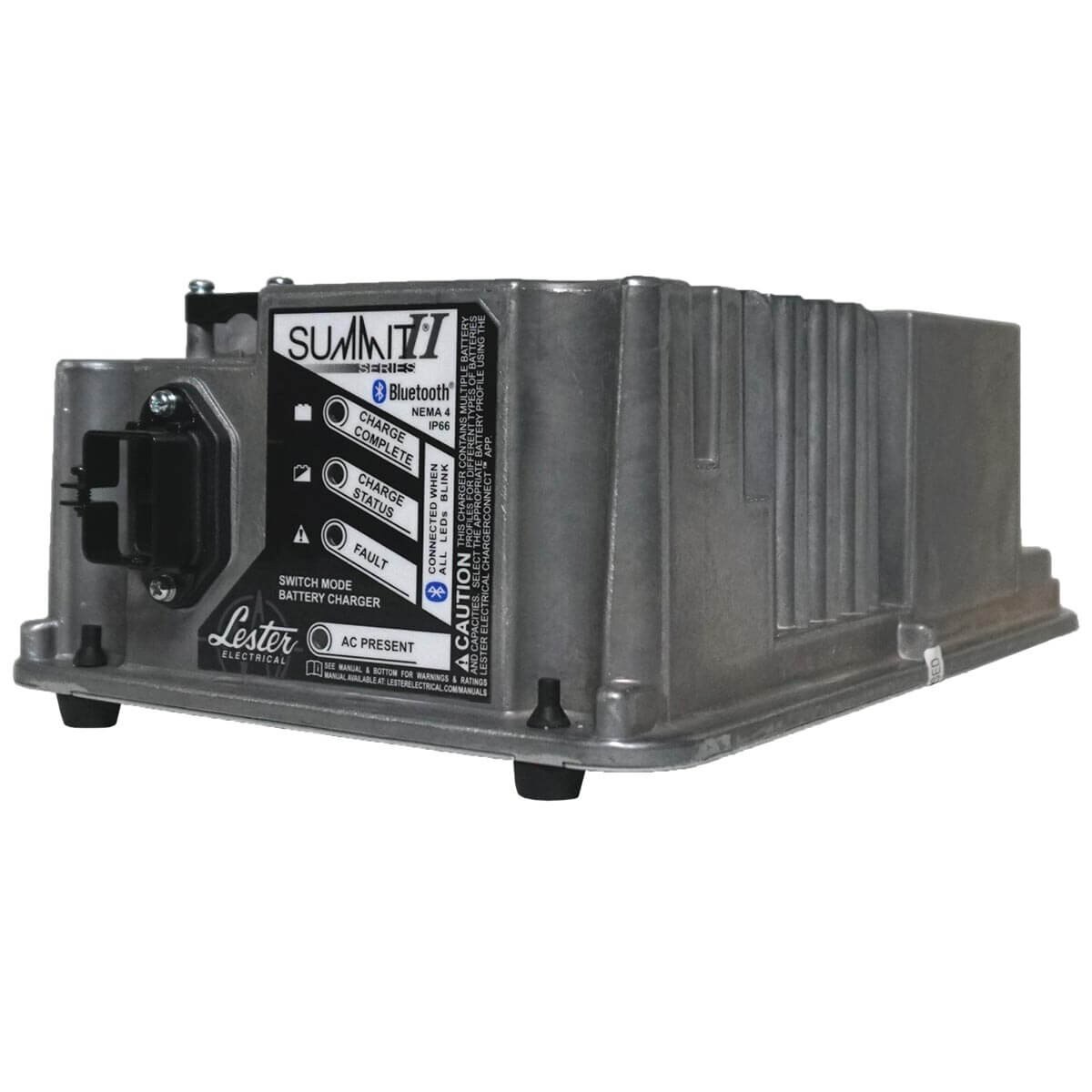

Summit Series II 650W 36V-48V Motive Battery Charger
Take your battery charging to the next level with the 650W Summit Series II (36V-48V) battery charger, a cutting-edge solution designed for high-performance and efficiency. Built with advanced high-frequency switch mode technology, this charger delivers rapid, efficient charging while optimizing energy consumption. Whether you're using it for daily operations or longer-term applications, the Summit Series II is engineered to enhance both your battery's capacity and overall lifespan.
Ideal for use in:
- Golf Carts
- Aerial Work Platforms (AWPs)
- Industrial Vehicles
- Floor Care Equipment
- Material Handling and Automation
- And much more!
With its advanced technology and intuitive management tools, the Summit Series II ensures that your batteries are always charged efficiently, helping to reduce downtime and maintenance costs. Download the ChargerConnect app (, ) today and take full control of your charging needs from anywhere!
Make the smart choice for your battery charging needs—choose the 650W Summit Series II for reliability, efficiency, and extended battery life.
- High-Frequency Switch Mode Technology: Ensures faster, more energy-efficient charging with reduced heat generation.
- Advanced Charge and Termination Algorithms: Optimizes battery performance by preventing overcharging and extending battery life.
- Bluetooth & Cloud Connectivity: Monitor and manage charging remotely with the ChargerConnect app (, ).
- Real-Time Charge Monitoring: Push charge history to the cloud for easy access and updates from anywhere.
- Multi-Voltage Support: Compatible with 36V and 48V batteries for various industrial applications.
- Proprietary Charging Performance: Maximizes battery life and ensures compliance with the latest standards for energy efficiency.
- Versatile Application Use: Ideal for golf carts, industrial vehicles, aerial work platforms, material handling equipment, and floor care equipment.
- Energy-Efficient Design: Reduces power loss and extends the life of both the charger and the battery.
| 650W Summit Series II Battery Charger - Specifications | |
|---|---|
| AC Input | |
| Voltage Range (Rated) | 100-240 Vac |
| Voltage Range (Operating) | 85-265 Vac (< 108 Vac: reduced power) |
| Frequency (Rated) | 50-60 Hz |
| Frequency (Operating) | 45-65 Hz |
| Phase | Single-phase |
| Current (Maximum) | < 8 A |
| Efficiency | > 90% peak, DOE test procedure, 115 Vac |
| Protection | Current limit, surge, transient, under voltage, over voltage |
| DC Output | |
| Power | 650 W |
| Voltage (Nominal) | 24 Vdc / 36 Vdc / 48 Vdc |
| Voltage (Maximum) | 36 Vdc / 54 Vdc / 72 Vdc |
| Current (Maximum) | 25 A / 18 A / 13.5 A |
| Voltage (Min Start-Up) | 10 Vdc |
| Battery Types | Lead-acid (Wet/AGM/Gel), Lithium, Custom |
| Protection | Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage |
| Environmental | |
| Enclosure Rating | IP66, NEMA 4 |
| Operating Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| User & Vehicle Interfaces | |
| Bluetooth | Wireless apps for Apple and Android phones and tablets |
| LED Indicators | Charge Complete (green), Charge Status (yellow), AC Present (blue), Fault (red) |
| Remote LED | Single tri-color; charge complete, charge status, fault |
| Lockout / Interlock | Single wire |
| Battery Temperature | Sensor optional |
| CAN Bus Communication | Standard |
| Mechanical | |
| Dimensions (LxWxH) | 287 x 182 x 93 mm (11.297 x 7.171 x 3.641 in) |
| Weight | 8.430 lbs (3.824 Kgs) |
| Cooling | Natural convection (no fan) |
| AC Input Connector | IEC 60320 C16 inlet with cord clamp |
| DC Output Connector | External terminals with cover |
| Lockout Connector | External terminal with cover |
| Battery Temp Connector | External terminal with cover |
| Remote LED Connector | External DB9 (DE9) |
| CAN Bus Connector | External DB9 (DE9) |
| Mounting | Shelf, wall, bulkhead, threaded rod, hook |
| Handle | Carrying handle optional |
| Safety / Regulatory | |
| Efficiency | DOE Code of Federal Regulations, CEC Appliance Efficiency Regulations, Title 20 |
