SG-Ultra Digital Battery Hydrometer, Portable Battery Density Tester
Overview
Digital Battery Hydrometer, Datalogging, Range: 0.0000 – 2.0000

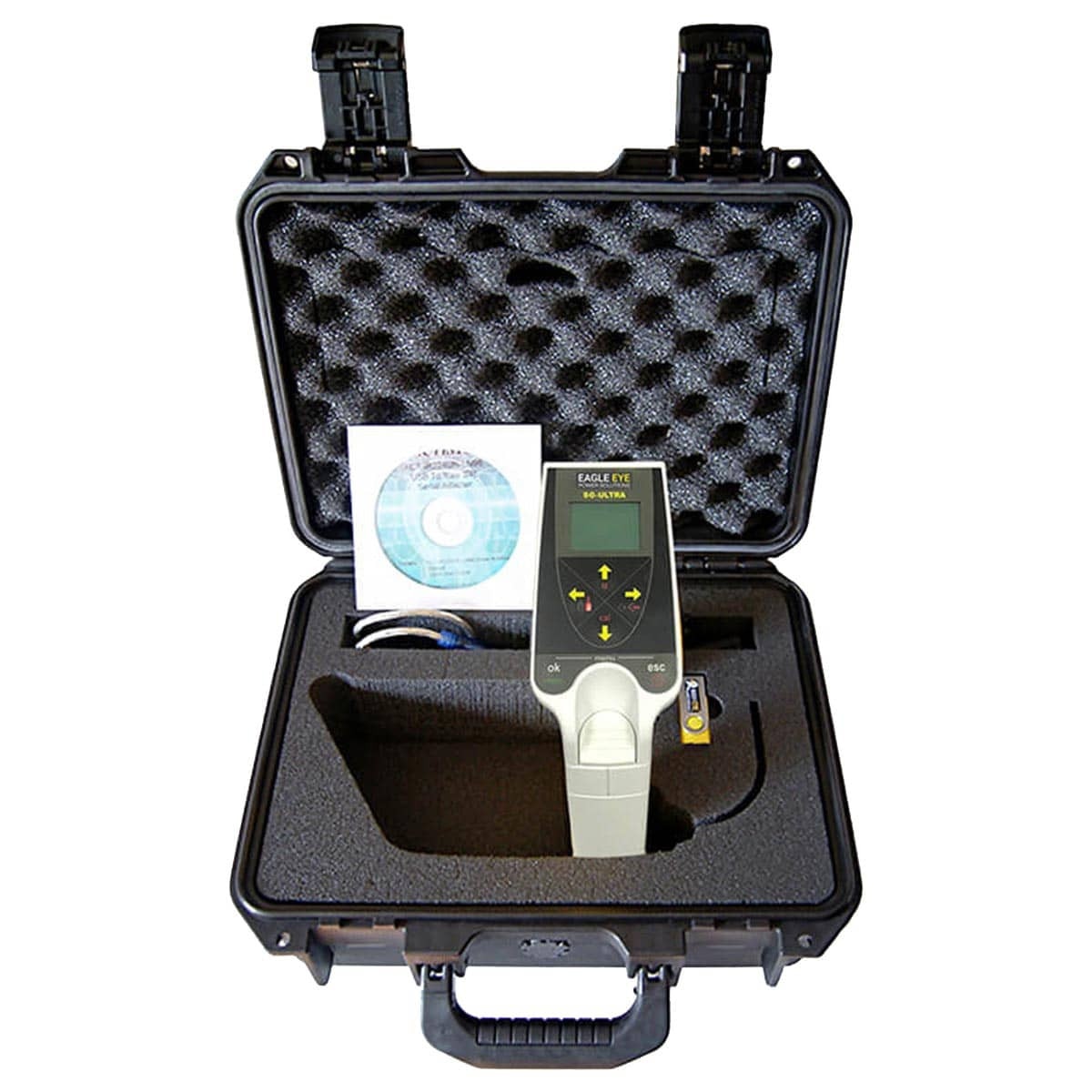

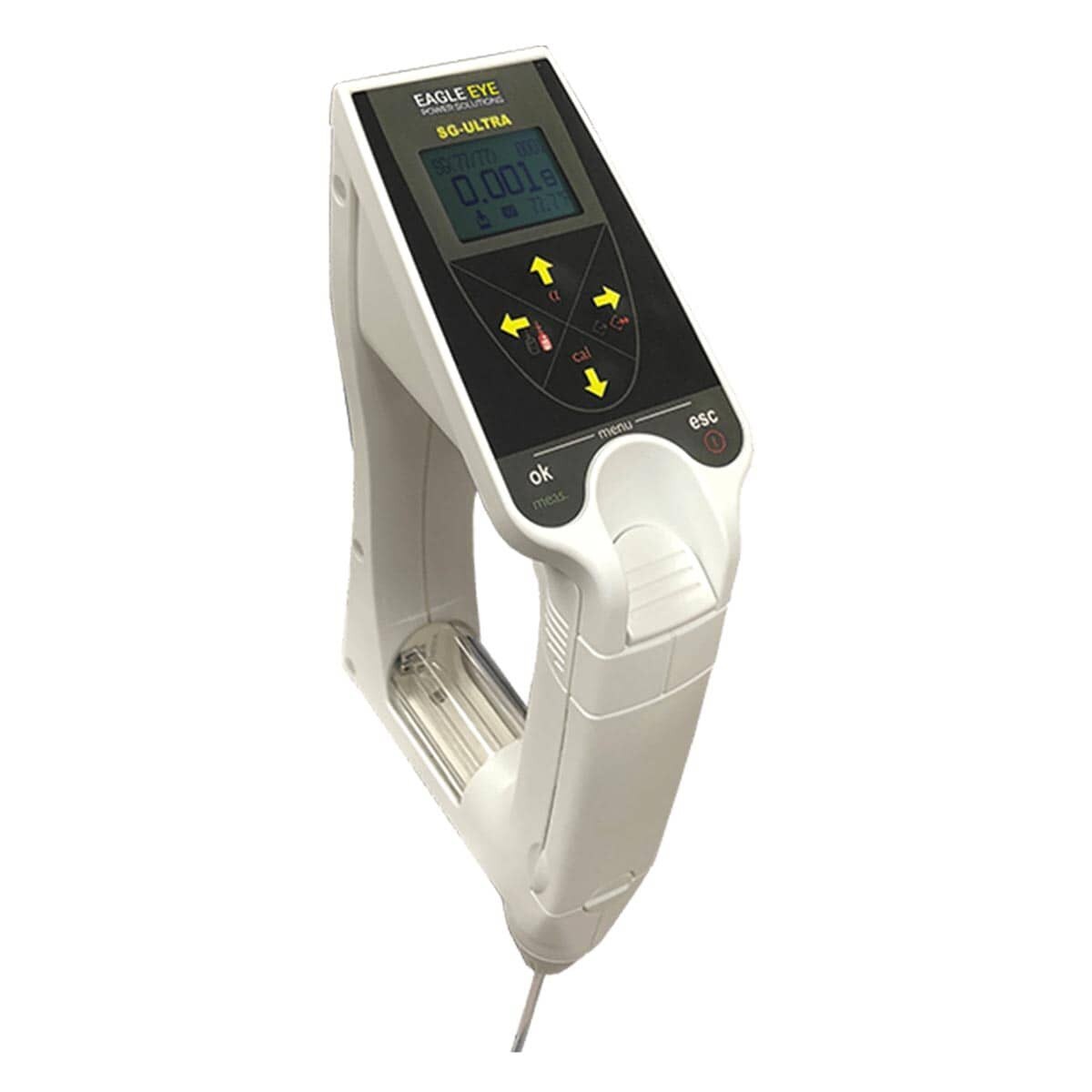

Eagle Eye Power Solutions' SG-Ultra Digital Battery Hydrometer, Portable Density Meter is a specific gravity tester that measures the density and density-related values of your sample while showing the measured results in seconds. The results include sample identification, measurement unit, temperature correction coefficient, instrument identification and date & time. This easy to use portable handheld battery hydrometer includes all required accessories to begin testing right out of the box! The SG-Ultra Digital Battery Hydrometer is commonly used for battery testing (Lead-Acid & Ni-Cad), alcohol and food testing, petroleum testing, and other custom density tests. One carrying case included with each unit.
Features
- Accuracy: 99.999% accurate
- Efficient and Safe: 10 times faster and safer than conventional methods
- Temperature: Measures specific gravity and temperature simultaneously
- User-Controlled Sampling: Select from multiple units of measure to suit your measurement needs or create custom requirements
- Data Collection: Wireless communication infrared data interface for data exchange with a PC and data export to a printer
- Battery Life: 90 hours of battery life
- Compliance: CE compliant
Specifications
| Measurement Range | Density: 0.000 – 2.000 g/cm3 Sample Temperature: 0° – 40°C (32° – 104°F) Viscosity: 0 – 2,000 mPa |
| Accuracy | Density: 0.001 g/cm3 Temperature: ±0.2 °C (±0.4 °F) |
| Resolution | 0.0001 g/cm3 |
| Minimum Sample Volume | 2 mL |
| Communication | IrDA Interface |
| Display | Backlit LCD |
| Internal Storage | 1100 Results |
| Operating Environment | 10 – 50 °C (-15 – 122 °F) |
| Power Requirements | (2) AAA Batteries |
| Sample Tube Dimensions | 142.875 x 3.175 mm / 5.625 x 1/8 in. Diameter *Custom lengths available |
| Dimensions | 229 x 114 x 64 mm (9 x 4.5 x 2.5 in.) |
| Weight | 360 g (12.7 oz.) |
| Kit Weight | 3.6 kg (8 lbs.) |
| Kit Dimensions | 41 x 10 x 20 cm (16 x 14 x 8 in.) |
Resources & Support
Product Literature
Support Documents
Downloads
FAQs
What is the measurement range of the SG-Ultra Digital Hydrometer / Density Meter?
The density range is 0.000–2.000 g/cm3.
How does the SG-Ultra communicate?
The SG-Ultra uses infrared data association communication (IrDA).
How many measurements does the SG-Ultra store?
The SG-Ultra stores up to 1,100 results internally.
What is the maintenance for the SG-Ultra Digital Hydrometer?
Maintenance is dependent on use and care. The device should be cleaned after each use. The consumable parts (pump, tubes, washers) of the SG-Ultra should be monitored closely and replaced regularly as needed.
When do I need to calibrate?
It is recommended to have the digital hydrometer calibrated annually.
Does the SG-Ultra come with software?

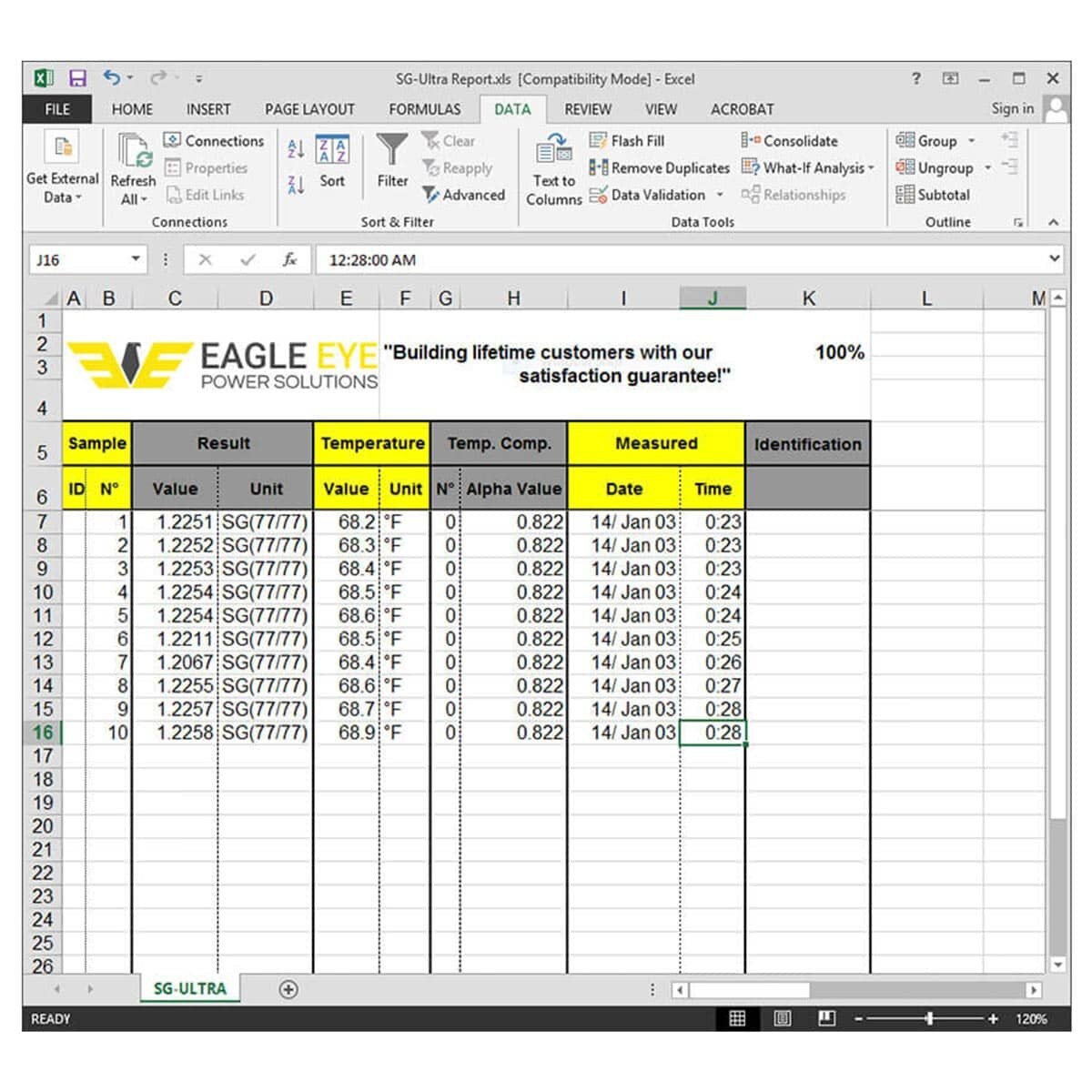

A macro-enabled Excel software comes standard (32-bit Office). If purchased with an IBEX-Pro or Ultra, an adapter is available for use with Exmons Ultra Plus. Exmons software allows you to incorporate the specific gravity and temperature measurements with internal resistance and voltage data from the IBEX-Series testers.
How long does the SG-Ultra take to display measurement results?
Measurement times vary depending on unit and sample temperature. The sample must equilibrate inside the measuring cell. This process generally takes only a few seconds but in some situations may take up to a minute.
