H₂ Hydrogen Gas Detector – Applicator Kit
The Eagle Eye Power Solutions Applicator Kit provides the required hardware to apply hydrogen bump-test gas to the HGD-5000 catalytic H₂ sensor. Purpose-built for quick, repeatable functional checks, the kit lets technicians deliver a controlled puff of hydrogen to verify sensor response and alarm behavior—without makeshift fittings or field improvisation.

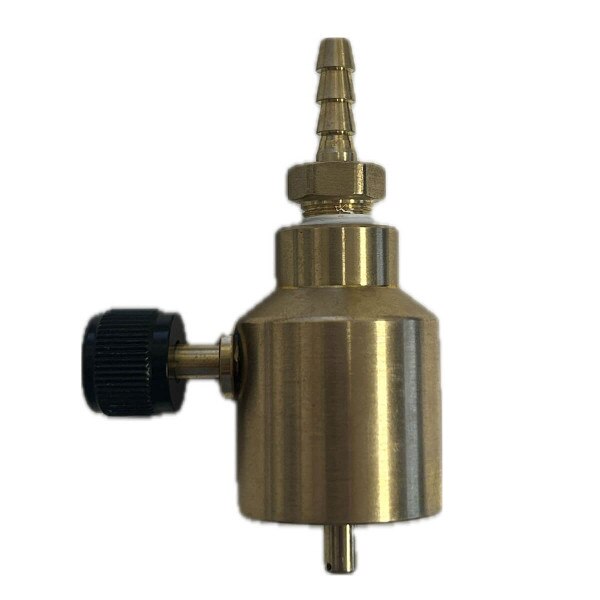

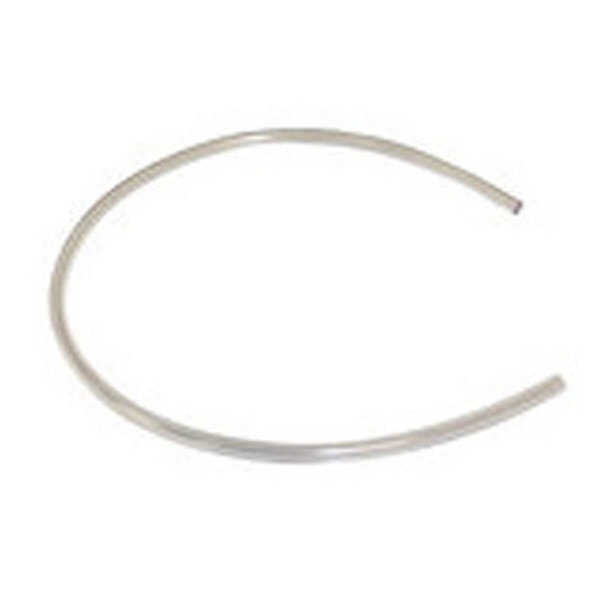

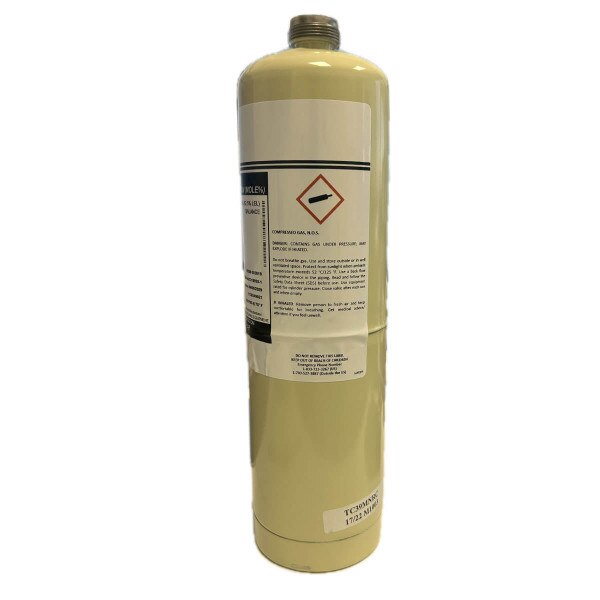

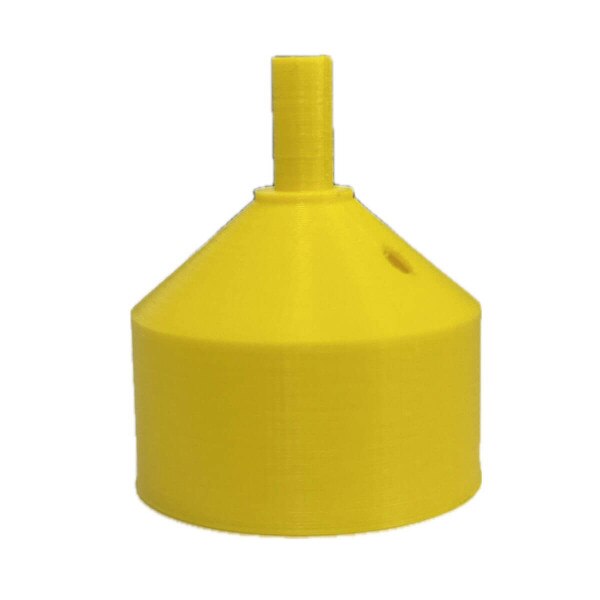

Designed to pair with EE-TEST-GAS-17L canisters (sold separately), the kit’s compact CV-2 regulator connects directly to the canister valve, feeding gas through the included vinyl tubing to the cone applicator that seats over the detector’s H₂ sensing head for accurate targeting and minimal waste.
What is the HGD Applicator Kit used for?
It provides the regulator, tubing, and cone needed to deliver hydrogen from an EE-TEST-GAS-17L canister to the HGD-5000 detector for bump testing.
Is the gas canister included?
No. The kit does not include gas. Use the EE-TEST-GAS-17L hydrogen canister (sold separately).
Which detectors is this kit compatible with?
It is designed for the HGD-5000 hydrogen gas detector with a catalytic H₂ sensor.
What components are in the kit?

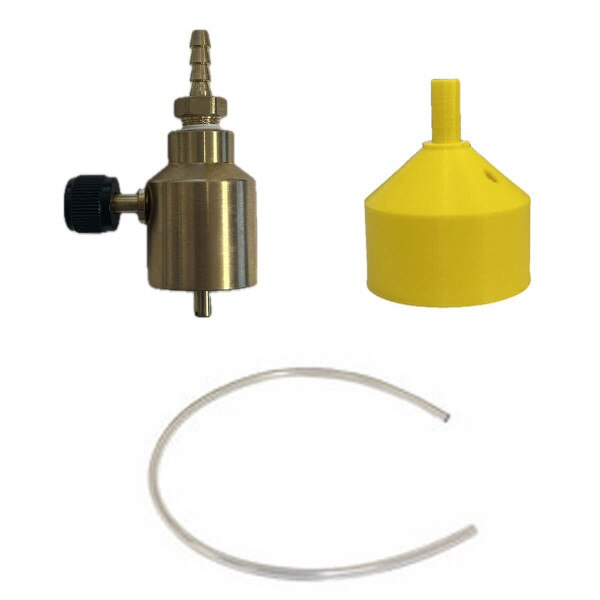

One CV-2 regulator, vinyl tubing, and a cone applicator that fits over the detector’s H₂ sensing head.
How do I perform a bump test with this kit?
Attach the regulator to the canister, connect the tubing, place the cone over the HGD-5000 sensor, and briefly open the regulator to expose the sensor to gas per your procedure.
Do I need any tools or extra fittings?
No additional tools are typically required. Ensure the canister and detector are accessible and follow all handling and safety guidelines.
Are there safety precautions?
Yes. Use in a well-ventilated area, keep away from ignition sources, and follow site safety policies and local regulations for compressed gas handling and storage.
