Bradley S19-921 Gravity Fed Eyewash Station
Overview

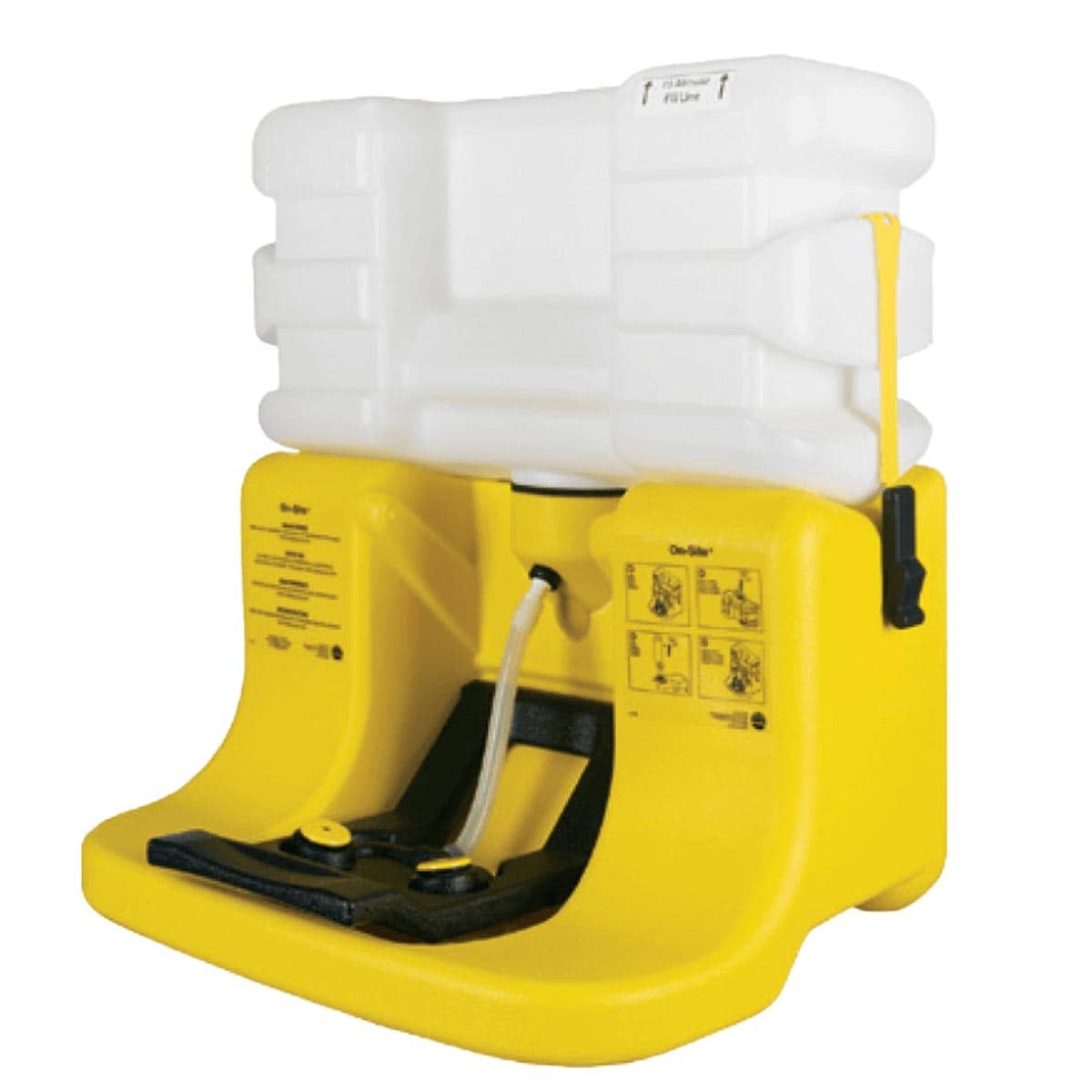

Bradley offers the S19-921 on-site self-contained gravity fed eyewash station with a clear, 7-gallon tank for easy fill level check. Mounts to the wall or optional service cart. The gravity fed eyewash tank is refillable. ABS plastic eye or eye/facewash. Universal identification sign and inspection tag included. Complies with ANSI Standard Z358.1 when installed and used properly. Manufacturer’s limited warranty.
Construction
Refillable eyewash tank fills to 7 gallons. Weighs 60 lbs. filled and 3.5 lbs. empty. Translucent tank made of impact resistant plastic. Pedestal supports the eyewash tank and weighs 6 lbs. The yellow pedestal and black pull-down arm are made of impact-resistant and chemical-resistant plastic. Wall bracket is stainless steel.
Standard Equipment
Tank
12″ H x 22″ W x 9″ D tank made of translucent white high-density polyethylene.
Pedestal
13-1⁄2″ H x 22″ W x 18-1⁄2″ D pedestal made of opaque yellow polypropylene, with a black polypropylene pull-down arm.
Wall Bracket
Stainless steel mounting bracket.
Waste
Nipple for 1⁄2″ I.D. tube.
Features
- Exceeds American National Standard Z358.1 Specifications
- Includes wall-mounting bracket, universal identification sign and inspection tag
- Full, one-year warranty – water preservative not included
Specifications
| Product Name | Bradley S19-921 Gravity Fed Eyewash Station |
| Type | Gravity-Fed Portable Eyewash Station |
| Capacity | 7 gallons |
| Water Supply | Gravity-fed (no plumbing required) |
| Flow Rate | 0.4 GPM |
| Activation | Gravity feed activation |
| Installation Type | Portable, wall or countertop mount |
| Tank Material | Plastic (polycarbonate) |
| Media Type | Water with preservative |
| Coverage | Eyes |
| Dimensions | 22 in. W x 9 in. D x 12 in. H |
| Color | Yellow |
| Application | Battery rooms, industrial facilities, maintenance areas, remote sites |
| Compliance | ANSI Z358.1-2014 (where applicable) |
Resources & Support
Product Literature
Support Documents
FAQs
What type of eyewash station is the Bradley S19-921?
The Bradley S19-921 is a gravity-fed, portable eyewash station designed for use in locations without direct plumbing access.
What is the capacity of the unit?
The unit has a 7-gallon capacity, providing sufficient water volume for emergency eye flushing.
Does this unit require a water connection?
No, the gravity-fed design allows the unit to operate without a direct water supply, making it ideal for remote or mobile applications.
What type of maintenance is required?
The unit uses a water preservative to help maintain water quality. Routine inspection and periodic refilling are recommended based on site safety protocols.
Where can this eyewash station be installed?
It can be wall-mounted or placed on a countertop, allowing flexible installation in battery rooms, industrial facilities, and maintenance areas.
What applications is this best suited for?
This eyewash station is ideal for environments where exposure to dust, chemicals, or battery-related hazards is present and immediate eye flushing capability is required.
