BMS Standard Enclosure
Overview

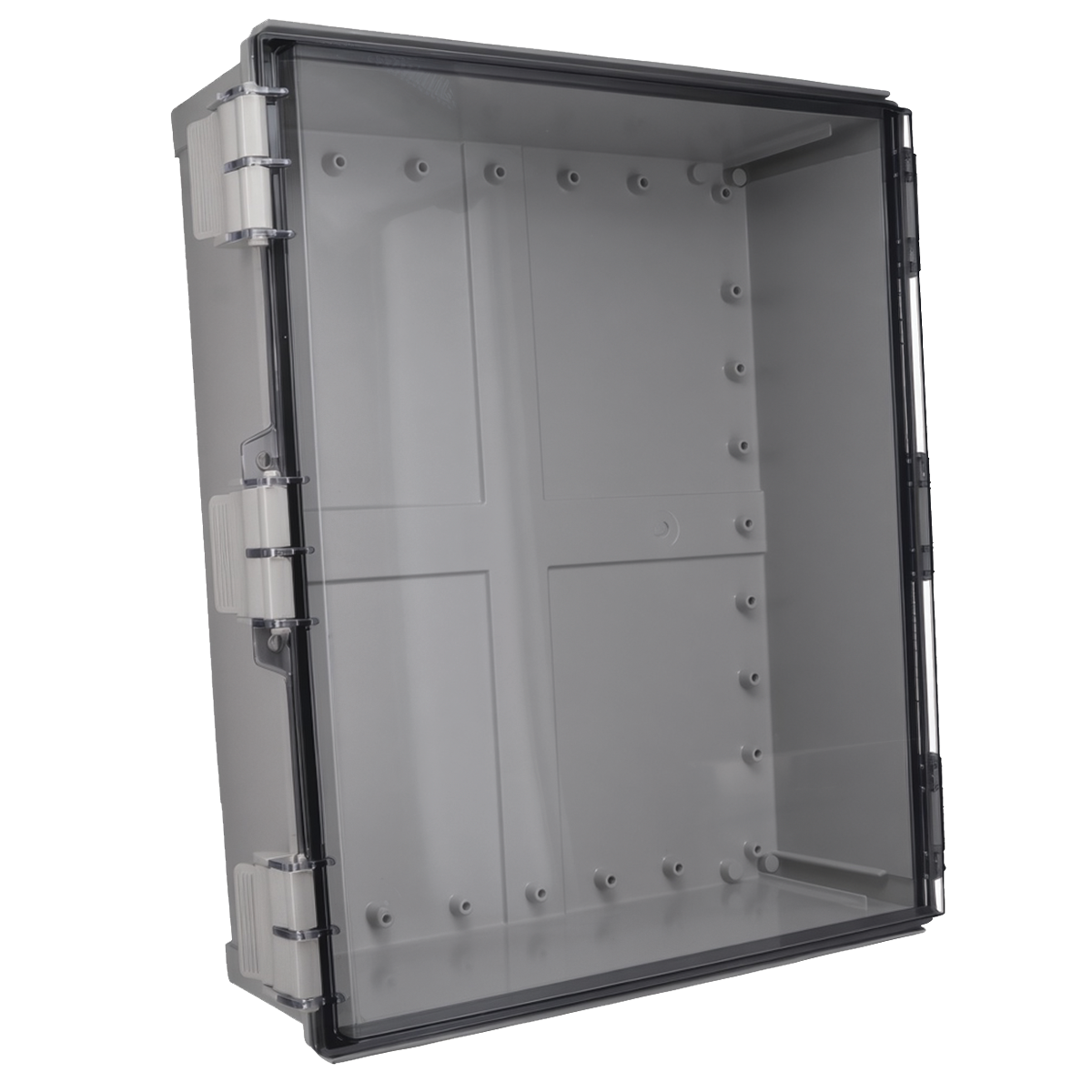

The BMS Standard Enclosure provides a clean, organized housing solution for battery monitoring system equipment and associated wiring. The enclosure features a hinged clear cover that allows convenient visual access while helping keep installed components contained within a dedicated protective housing.
An included plastic internal panel provides a dedicated mounting surface for BMS components, while the vent kit supports enclosure airflow. Liquid-tight PVC conduit and connection hardware are also included to support organized cable routing into and out of the enclosure.
For installation, the package includes a wall mounting bracket kit, cable ties, a metallic conduit strap, lath screws, and an installation decal. Together, these components provide the essential mounting, cable management, and installation hardware required for a standard BMS enclosure installation.
The enclosure measures 20.09 inches x 15.75 inches x 7.78 inches and is supplied as a complete kit to simplify BMS installation and equipment organization.
Features
- 20.09 in. x 15.75 in. x 7.78 in. plastic enclosure
- Clear hinged enclosure cover
- Plastic internal mounting panel
- Enclosure ventilation kit
- 3/4 in. liquid-tight PVC conduit and connector
- Wall mounting bracket kit
- UL 21 rated cable ties with 75 lb tensile strength
- 3/4 in. metallic one-hole conduit strap
- #8 x 1/2 in. lath screws
- Installation decal included
- Complete mounting and cable management package for BMS installations
Specifications
| Product Name | BMS Standard Enclosure |
| Enclosure Dimensions | 20.09 in. x 15.75 in. x 7.78 in. |
| Enclosure Construction | Plastic enclosure |
| Enclosure Cover | Clear hinged cover |
| Internal Panel | Plastic internal mounting panel |
| Ventilation | Vent kit included |
| Conduit | 3/4 in. liquid-tight PVC conduit |
| Conduit Connector | 3/4 in. liquid-tight PVC conduit connector |
| Wall Mounting | Wall mounting bracket kit included |
| Cable Management | 8 in. mountable cable ties, 75 lb. tensile strength, UL 21 rated |
| Conduit Support | 3/4 in. metallic one-hole strap |
| Installation Hardware | #8 x 1/2 in. lath screws |
| Installation Decal | Included |
| Application | Housing, mounting, cable routing, and organization of battery monitoring system equipment |
Resources & Support
Support Documents
FAQs
What is included with the BMS Standard Enclosure?
The kit includes the plastic enclosure with clear hinged cover, internal mounting panel, vent kit, 3/4 in. liquid-tight PVC conduit and connector, wall mounting brackets, cable ties, metallic conduit strap, mounting screws, and installation decal.
What are the dimensions of the BMS Standard Enclosure?
The enclosure measures 20.09 inches x 15.75 inches x 7.78 inches.
Does the BMS Standard Enclosure include an internal mounting panel?
Yes. A plastic internal panel is included to provide a dedicated mounting surface for BMS equipment and related components.
Does the enclosure include cable routing hardware?
Yes. The kit includes 3/4 in. liquid-tight PVC conduit, a conduit connector, a metallic one-hole strap, cable ties, and installation hardware to support organized cable routing.
Can the BMS Standard Enclosure be wall mounted?
Yes. A wall mounting bracket kit is included to support installation of the enclosure on a suitable wall or mounting surface.
Does the BMS Standard Enclosure include ventilation?
Yes. A vent kit is included as part of the standard enclosure package to support airflow through the enclosure.
