LB-50-750 Welding Load Bank (Recommended replacement for Miller Electric 750)
The Ultimate Solution for Welding Machine Testing
The Eagle Eye Power Solutions LB-50-750 Load Bank is an advanced tool designed to deliver adjustable load for precise troubleshooting, calibration, and demonstration of welding power sources and generators. Lightweight and built for portability, it features:
- Trusted replacement for the Miller Electric 750 load bank
- Advanced measurement and control technology
- Fully integrated DC load functionality
- Clear and accurate data display
- Durable load control systems for reliability
- Optimized heat dissipation for efficient operation
The LB-50-750 simplifies your testing processes before and after welder repairs, providing unparalleled performance and reliability to meet the most demanding requirements.

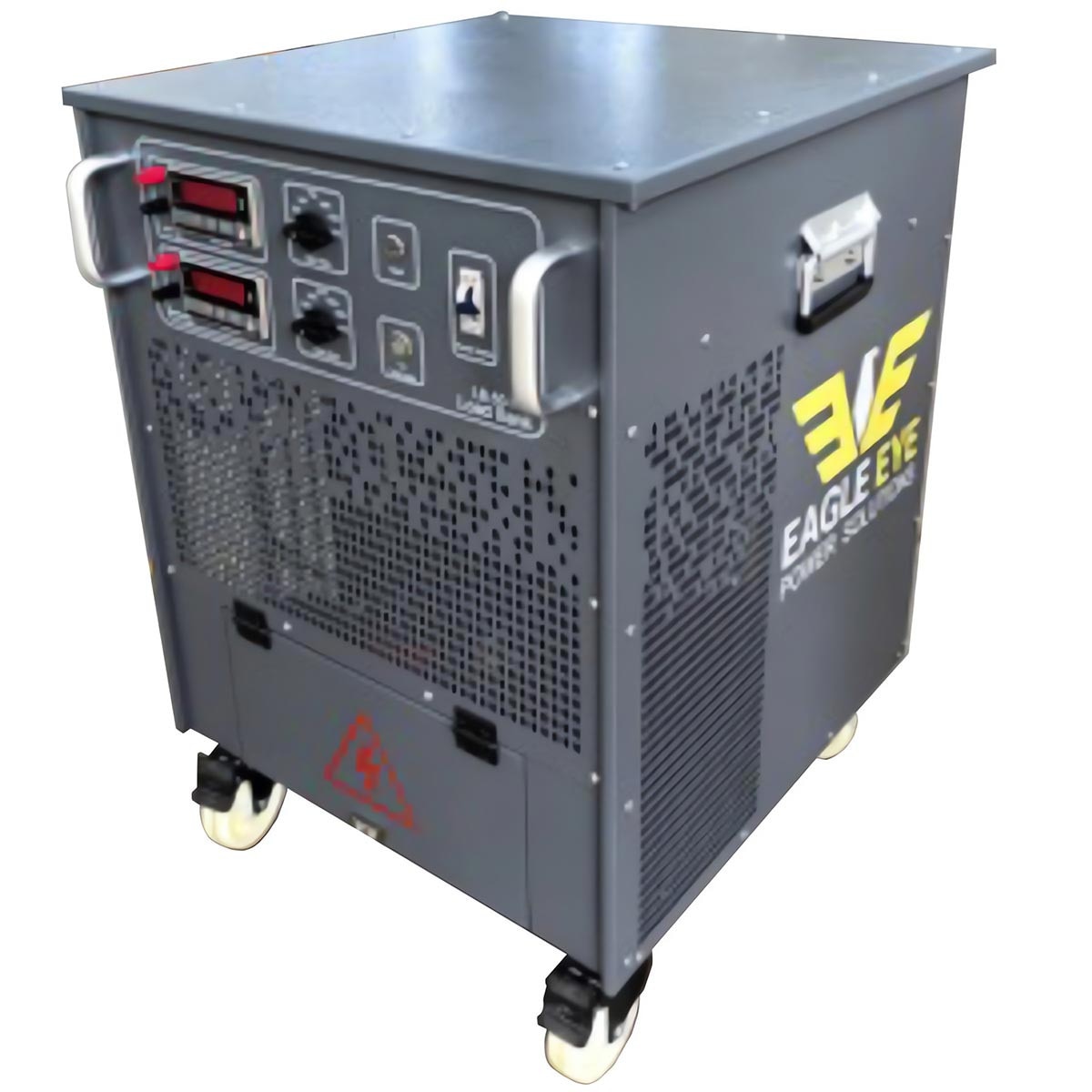

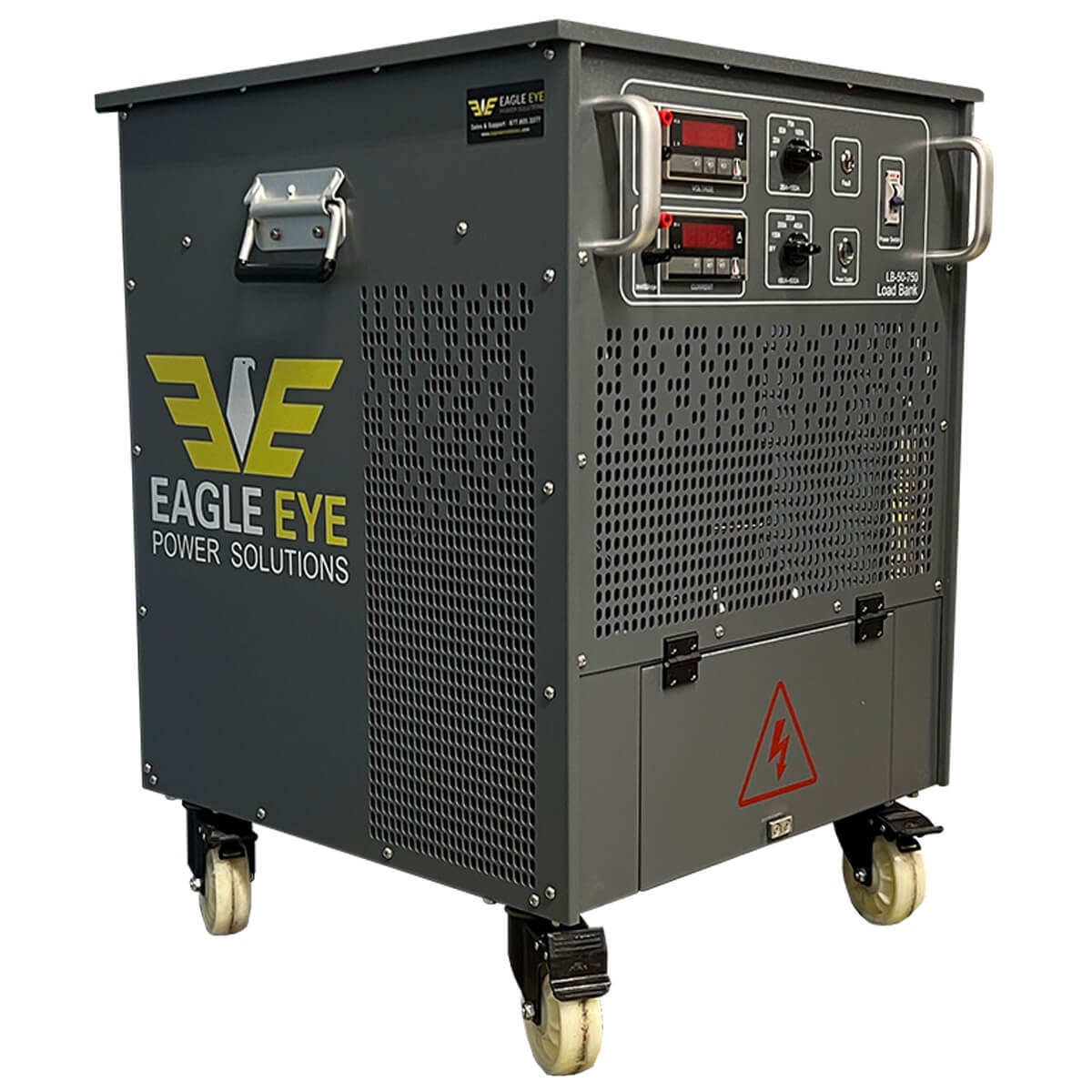

- Caster wheels for easy maneuvering
- Two load selection switch ranges for fine tuning loads from 25-750 Amps
- Digital displays for AC and DC output
- Includes 16 foot (5 meter) power cord
Input Power | 115 VAC 50/60 Hz |
Rated Voltage | 50 VAC/VDC (max voltage) |
Rated Current | 750A at 50 VAC / 750A at 50VDC |
Load Steps @ 50 VAC/VDC | Load Steps Switch 1: 25, 50, 75, 100, 125, 150A Load Steps Switch 2: 100, 200, 300, 400, 500, 600A |
Load Tolerance (Each step / Overall) | ±5% / ±3% |

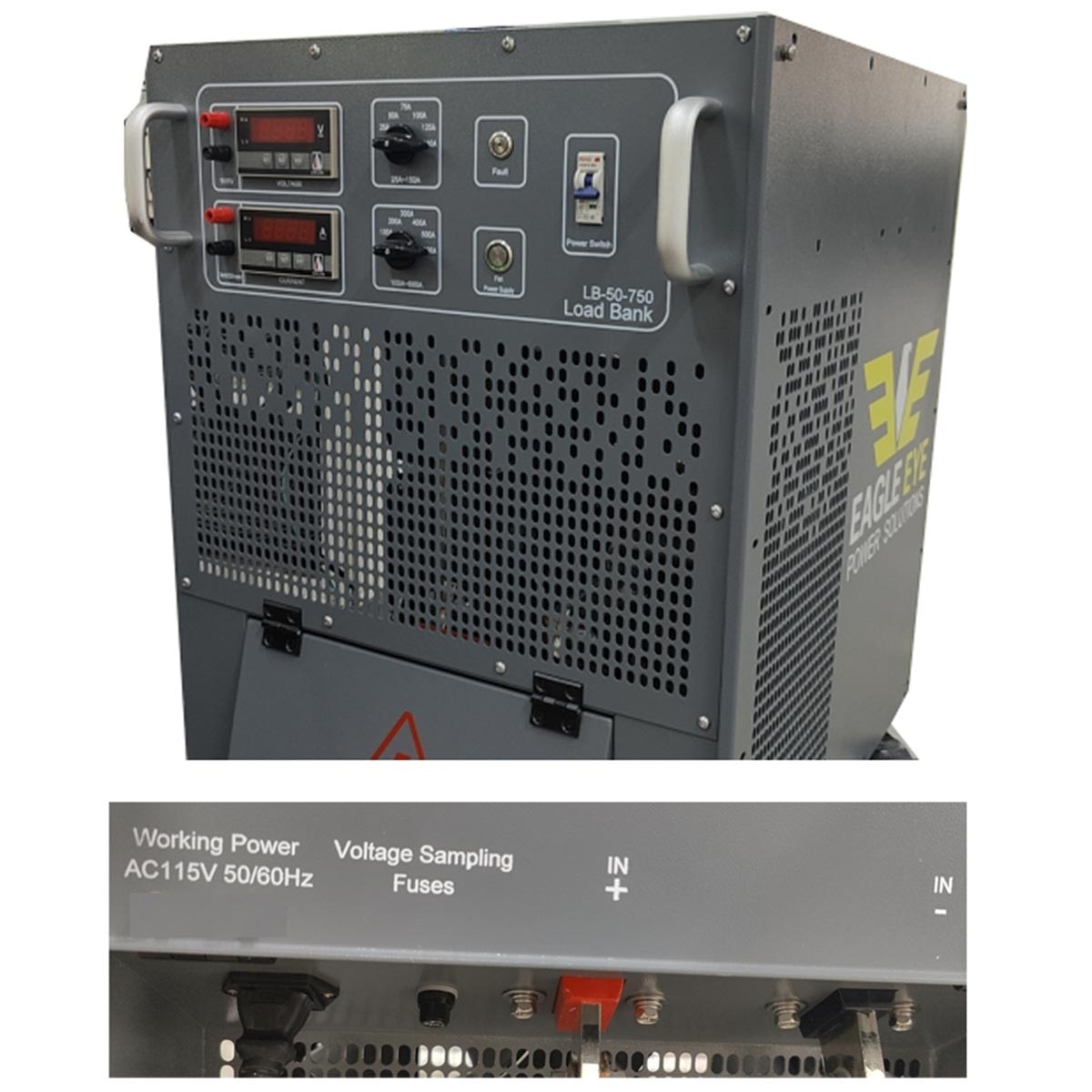

Wire Connection | Load bank input — terminal block Primary power input — 3-pin socket |
Insulation | Type F Electrical Insulation |
Cooling | Forced air cooling, horizontal air intake and exhausting cooling |
Mobility | Caster wheels and handles on sides, Two locking wheels |
Color | Pantone Cool Gray 11 C |
Dimensions | 19.25 x 20.625 x 11.25 in (489 x 524 x 286 mm) |
Weight | 175 lbs (80 kg) |
Operating Environment | Operating Temperature: 5 – 122 °F (-15 – 50 °C) Humidity: ≤95% RH |
