• LB-50-350A Welding Load Bank (Recommended replacement for Miller Electric 350A)

LB-50-350A Welding Load Bank (Recommended replacement for Miller Electric 350A)

(0)No Reviews yet

The Load Bank Approved for Welding Machine Calibration

The Eagle Eye Power Solutions LB-50-350A Load Bank is a state-of-the-art solution that provides adjustable load for troubleshooting, calibrating or demonstrating welding power sources and generators. Conveniently portable and engineered with:

  • Recommended replacement for Miller Electric 350A load bank
  • Sophisticated measurement and control mechanism
  • Integrated DC load bank
  • Accurate data acquisition and display
  • Reliable load/load control systems
  • Efficient heat dissipation devices

The LB-50-350A ensures that your testing procedures before and after welder repair are streamlined and meets your testing needs with exceptional performance.

  • 44 lbs total weight for ease of portability

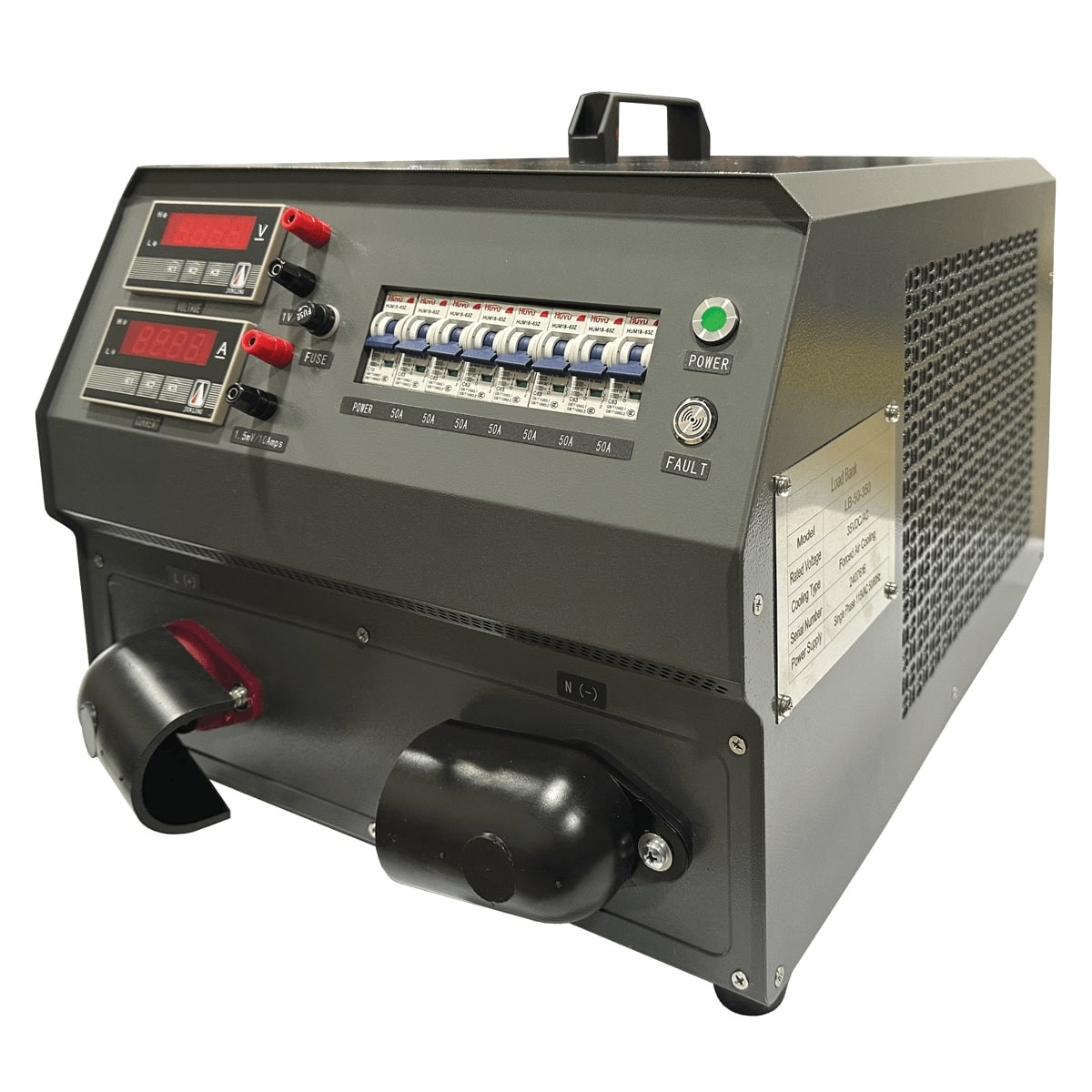

  • Seven 50 amp load “circuit breaker” type switches

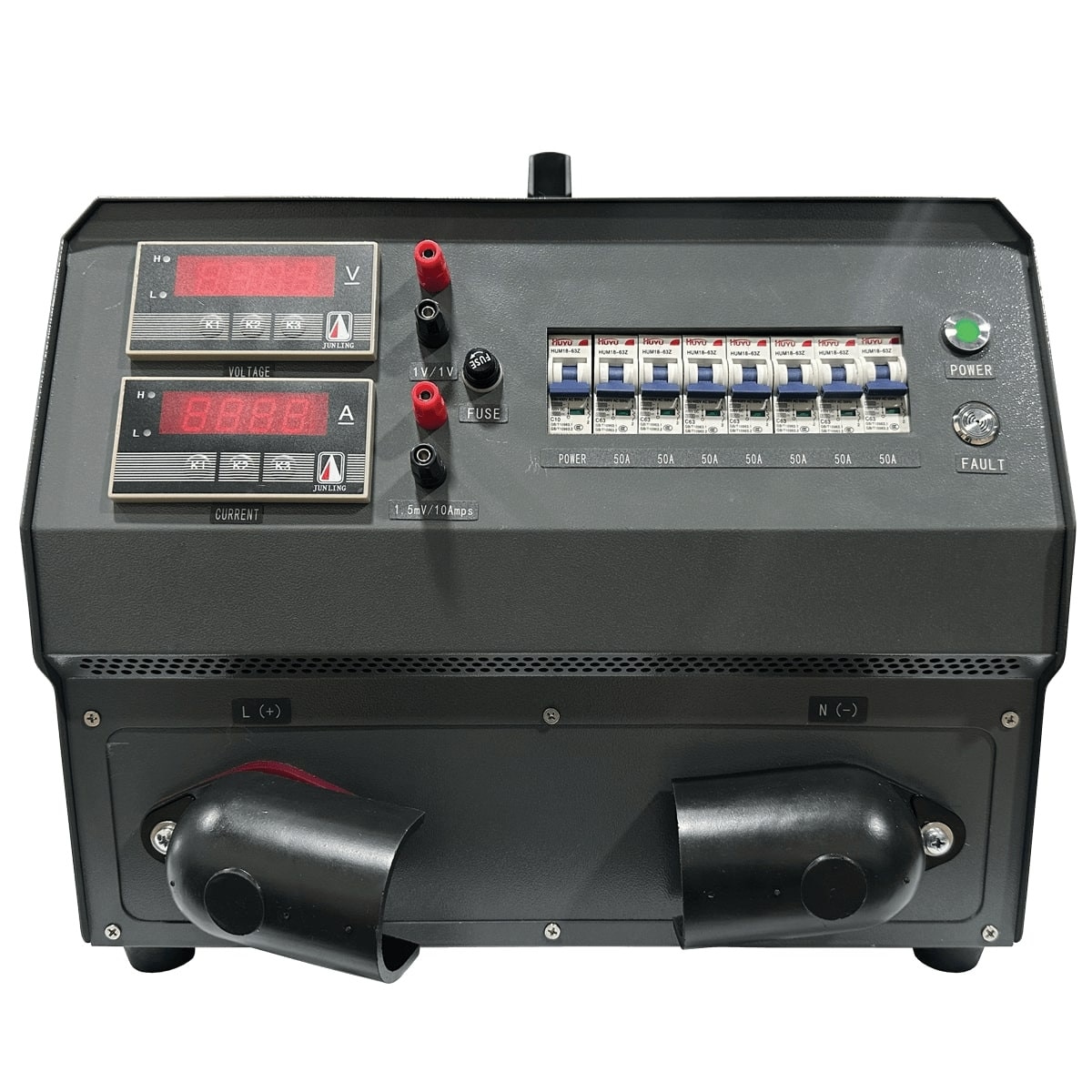

  • Digital displays for AC and DC output
  • Includes 16 foot (5 meter) power cord
Type of Input Power115 VAC 50/60 Hz
Rated Capacity at 100% Duty Cycle:300 Amperes at 30 VAC/VDC
Rated Capacity at 30% Duty Cycle:350 Amperes at 35 VAC/VDC. 12.25 kW
Dimensions19.25 x 20.625 x 11.25 in (489 x 524 x 286 mm)
Weight44 lbs (20 kg)
Load Accuracy (per gear)±5%
CoolingForced air cooling, side air in, side air out
Operating EnvironmentOperating Temperature: 5 – 122 °F (-15 – 50 °C)
Humidity: ≤95% RH
